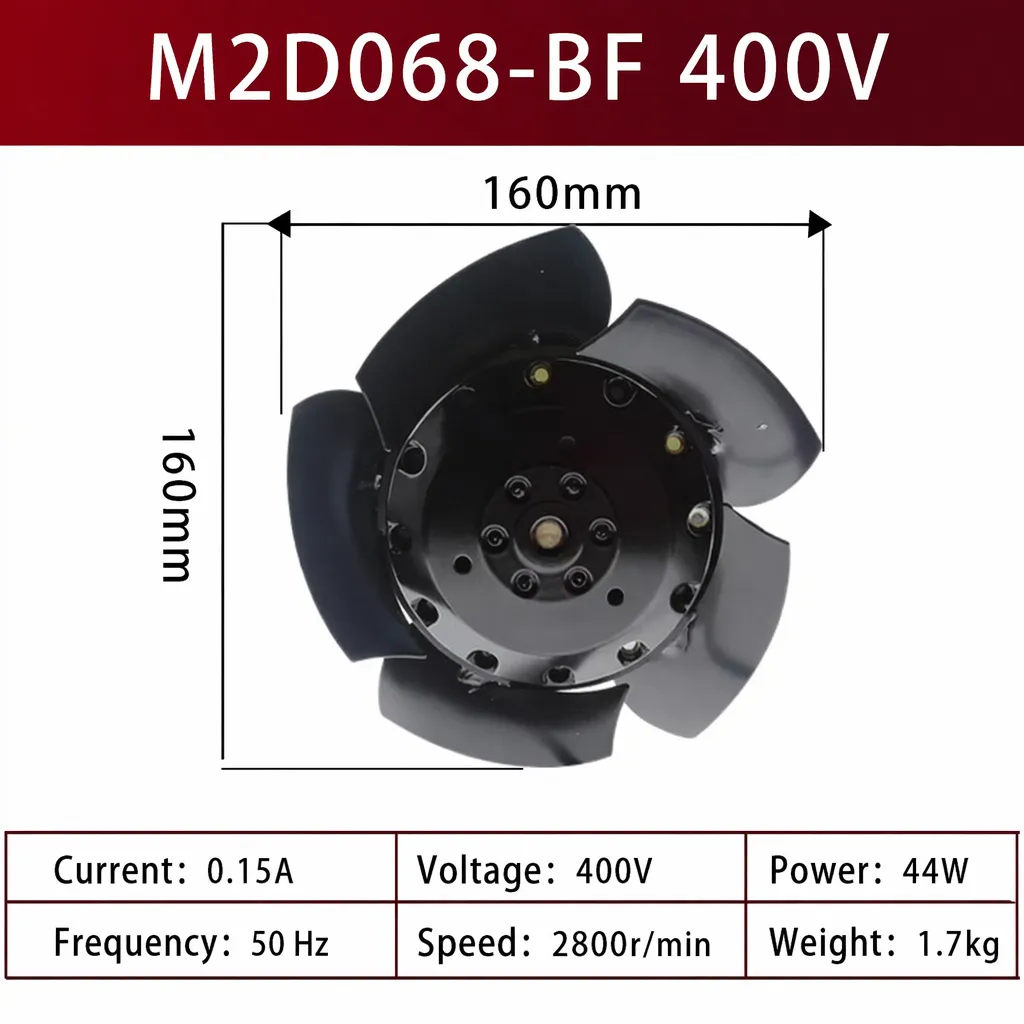

Small cabinet cooling fans keep enclosures, control panels and VFD cabinets within safe temperature limits, and the dc motor behind each fan must run at the voltage the system actually supplies. Selecting a 12V PMDC motor for a 24V bus, or forcing a 24V unit onto a 12V supply, changes current, heat and service life in ways that are easy to underestimate during panel design. The right voltage is not a tuning afterthought; it is a foundation for reliability.
A pmdc motor and a dc motor of the same mechanical power draw roughly fixed wattage from the source. Halving the supply voltage doubles the current needed to deliver that output, because power equals voltage multiplied by current. The extra current flows through armature windings, where copper loss rises with the square of current. A 12V PMDC motor rated for a given airflow therefore pulls roughly twice the amps of an equivalent 24V model, producing more heat in the same winding mass and raising the temperature the cabinet cooling fan must then remove.
The permanent magnet stator of a brushed unit establishes a fixed field, so the electromagnetic back-EMF scales directly with rpm. At a set supply voltage the fan settles where back-EMF plus winding drop matches the bus. Lower the voltage and rpm falls; raise it and the small fan overspeeds, increasing acoustic noise and bearing load. This is why a cabinet cooling fan should be sized to the available bus rather than adapted afterward, since the field strength cannot be re-tuned in a permanent magnet machine.
Where long cable runs feed a row of fans, the current penalty of a low-voltage bus becomes a wiring problem. A 12V PMDC motor in a fan string draws about double the amps of a 24V unit, so the conductors must be thicker to stay within voltage-drop limits. Selecting AWG by current rating and run length prevents the far end of the cabinet cooling fan loop from seeing a sagged bus that slows every small fan. Undersized wire also adds its own I²R heating inside the bundling.
Switch-mode and linear supplies each carry a continuous rating plus a higher inrush at switch-on. A 12V PMDC motor draws a large locked-rotor current for the first instants, and several starting together can exceed a tightly sized PSU. Derating the supply to roughly 70–80% of nameplate and allowing for simultaneous start-up keeps the bus stable. This mirrors the derating discipline found in IEC 61800 for adjustable-speed drives, where the source must support both running and transient demand without sag.
PWM speed control chops the supply to vary effective voltage without wasting heat in a series resistor. A 12V PMDC motor driven by a 24V bus through PWM keeps full torque at low speed and runs cooler than a resistive dropper would allow. The trade-off is switching noise and brush commutation stress at low duty. Choose a PWM controller rated for the motor's current and for the electromagnetic environment of the panel, and keep the controller away from sensitive measurement wiring.
Efficiency favours the higher bus where wiring permits it. A 24V dc motor at half the current of a 12V PMDC motor at the same load loses less in wiring and windings, so the enclosure stays cooler and the PSU works easier. Permanent magnet machines are already efficient; the gain from 24V is mostly reduced I²R and smaller conductors. Where space and supply allow, 24V is the lower-heat choice for continuous cabinet cooling fan duty, and IEC 60034 efficiency classes give a common language for comparing losses across ratings.
A panel-building workshop in southern Europe served food-processing lines with wall-mounted control cabinets. The original design mixed 24V sensors with a 12V fan bus fed from a shared supply, and during summer the fans slowed as the long 12V runs sagged under heat, pushing enclosure temperatures past the limit. The team re-spined the cooling loop onto a dedicated, derated 24V supply and matched each cabinet cooling fan to that bus. After the change, enclosure temperatures held steady through peak season and brush service intervals lengthened, since the windings ran cooler.
At procurement, confirm the nameplate voltage matches the planned bus and check that the supplier's documentation covers CE and UKCA where required. On site, measure no-load and loaded current against the quoted value, and verify the wire gauge against the run length and current. In use, avoid running a brushed gearmotor or fan below its rated voltage to save power, because the extra current only adds heat. During maintenance, clear impeller dust so torque demand stays low and the commutator stays within its temperature band.
Matching dc motor voltage to the cabinet supply is a reliability decision, not a tuning detail. A 12V PMDC motor suits short 12V buses with derated supplies and modest runs, while 24V wins on long runs, lower current and cooler windings. Confirm voltage at procurement, size wire and PSU for the actual current, and use PWM where speed control is needed. Following IEC 60034 and UL 1004 guidance on motor ratings and efficiency helps procurement specify units that survive real enclosure duty.
Why does lowering fan voltage increase current draw?
Answer: Because delivered power stays near constant, current must rise as voltage falls (power equals voltage times current). A lower bus therefore pushes more amps through the armature, raising I²R copper loss and heat. The cabinet cooling fan then runs slower yet hotter, which stresses brushes and windings. Sizing the supply and wire for the higher current at the chosen voltage prevents sag and protects reliability.
Is 24V always better than 12V for cabinet fans?
Answer: Not always. A 24V dc motor reduces current, wiring size and heat, which helps long runs and continuous duty. But a 12V bus is simpler where the panel already runs on 12V and cable runs are short. The choice depends on run length, available supply and ambient load. Match the cabinet cooling fan to the existing bus rather than forcing a conversion that adds cost and failure points.
How should wire gauge be chosen for fan wiring?
Answer: Select AWG from the continuous current and total run length, keeping voltage drop within a few percent at the far fan. A low-voltage bus doubles current versus 24V, so 12V loops need thicker conductors. Account for all fans on the loop and for inrush at start-up. Undersized wire adds its own heat and sags the bus, slowing every small fan and raising enclosure temperature under load.
Can PWM control damage a brushed motor?
Answer: PWM is safe when the controller is rated for the motor's current and the electromagnetic noise is managed. At very low duty the brushed commutator sees repeated stress and the small fan may buzz or stall. Keep the PWM frequency suited to the motor, separate control wiring from power, and avoid prolonged low-speed running on a dusty cabinet cooling fan. Properly applied, PWM extends life by reducing resistive losses.
What voltage mistakes shorten fan service life?
Answer: A 12V PMDC motor forced onto a 24V bus overspeeds and burns the commutator; run on a sagged 12V bus it pulls excess current and overheats. Mixing voltages on one supply, skipping PSU derating and ignoring wire drop are common errors. Specify the cabinet cooling fan to the confirmed bus, measure loaded current at install, and keep the permanent magnet machine within its rated voltage band for long, quiet service.
