What Intelligent Fault Self Diagnosis Function of New Generation Motor DC Driver
When selecting a driver motor dc for industrial fan applications, most engineers focus on voltage range, current capacity, and PWM resolution. These are reasonable starting points. But one capability that separates new generation driver motor dc units from their conventional predecessors is often underweighted: integrated intelligent fault self-diagnosis. Understanding what these functions do, and how they work, changes how you evaluate motor drivers for demanding applications.
This is particularly relevant when working with high speed bldc permanent magnet motor configurations, where undetected faults can cause rapid mechanical or electrical damage within seconds.
Why Fault Self-Diagnosis Matters in Modern DC Motor Drivers
Traditional motor controllers relied primarily on external protection circuits: fuses, thermal cutoffs, and downstream relays, to interrupt power when something went wrong. The problem with this approach is response time. An external fuse responds to a sustained overcurrent event; it cannot catch a microsecond-scale shoot-through event or identify a stator winding asymmetry before it becomes a failure.
New generation driver motor dc designs shift this protection intelligence inside the driver IC itself. Instead of reacting after the damage occurs, the driver continuously monitors its own operating state and the motor it is driving, identifying fault conditions in real time and responding before damage propagates. This is what "intelligent fault self-diagnosis" refers to in practical terms.
For anyone who has dealt with a high efficiency brushless pmdc motor that tripped a breaker mid-operation with no useful diagnostic information, the value of an onboard fault register becomes immediately clear.
Core Fault Types Detected by New Generation Driver Motor DC Designs
The specific fault detection capabilities vary between driver ICs and product families, but modern new generation driver motor dc units typically monitor for several categories of fault condition simultaneously:
Overcurrent and Short-Circuit Detection

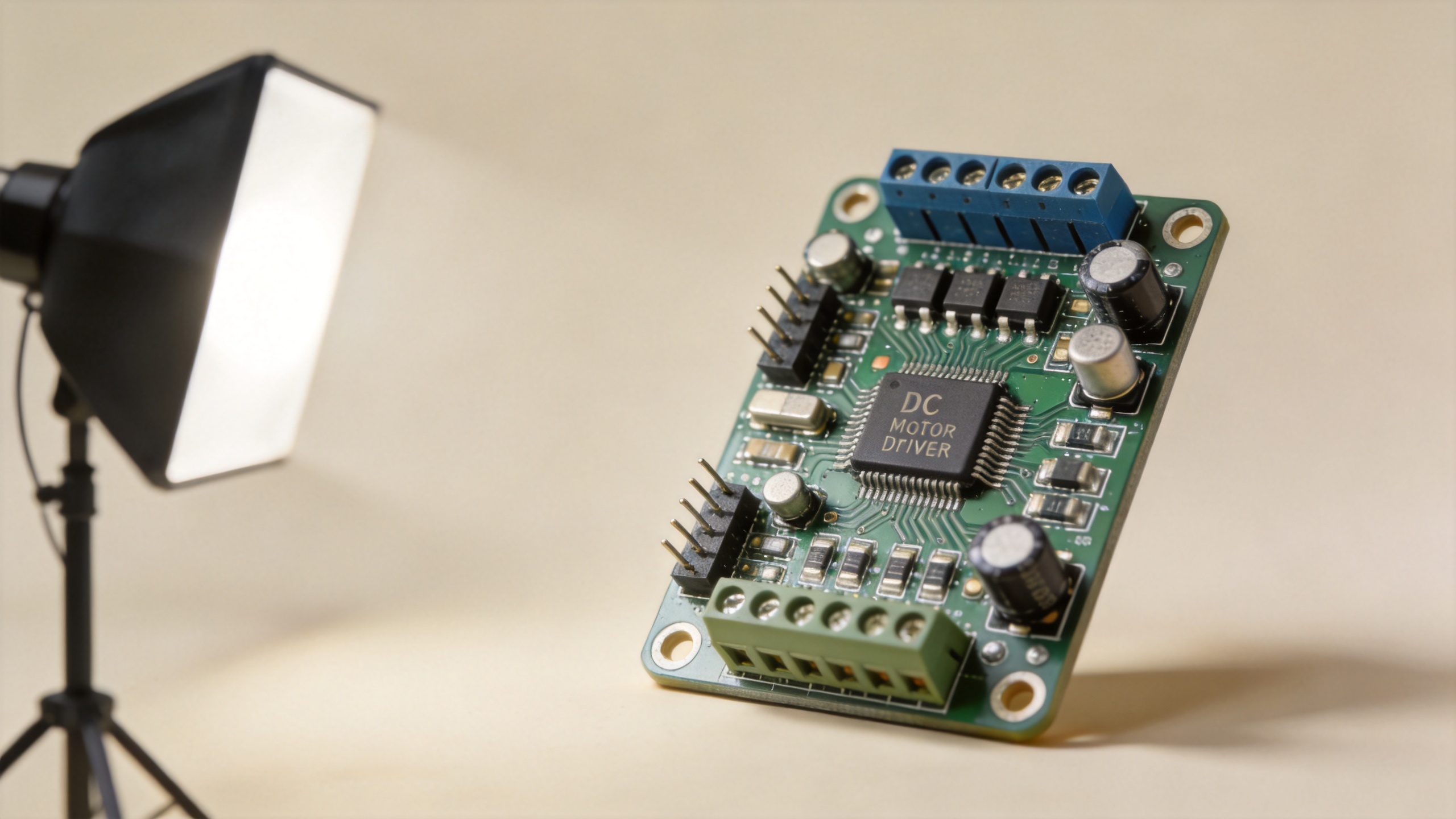

Overcurrent protection is the most fundamental self-diagnosis function. In a new generation driver motor dc, the overcurrent threshold is typically configurable — not a fixed hardware value. When motor current exceeds the programmed limit, the driver can respond by reducing PWM duty cycle, entering a hiccup mode, or latching off entirely, depending on how the fault response is configured. Short-circuit detection is faster still, operating at nanosecond timescales to catch half-bridge shoot-through events before they damage MOSFETs.
Thermal Overload and Shutdown
Integrated temperature sensing within the driver IC monitors junction temperature continuously. When the device approaches its thermal limit, the driver can first reduce gate drive strength to limit switching losses, then escalate to a full thermal shutdown if temperature continues rising. The key distinction from older designs is that the driver stores the fault condition in a readable status register — so when the system recovers, you can confirm that a thermal event occurred, rather than guessing at root cause.
This behavior is directly observable when working with a low noise brushless pmdc motor driving a cooling fan in a sealed enclosure: if the ambient temperature rises unexpectedly, the driver flags a thermal warning before any motor damage occurs.
Undervoltage Lockout (UVLO)
When supply voltage drops below the driver's operating threshold — often due to inrush events from other loads on the bus — an intelligent driver motor dc will enter undervoltage lockout mode, preventing erratic motor behavior or partial-gate drive conditions that can cause conduction asymmetry. UVLO thresholds are typically specified with hysteresis to prevent oscillation at the boundary.
Motor Lock Detection (Stall Detection)
In applications using high speed bldc permanent magnet motor designs, a stalled rotor is a high-risk condition. The driver motor dc cannot advance the commutation sequence if the rotor is blocked; continued current injection into a stalled winding builds heat rapidly. New generation drivers monitor the timing relationship between commutation signals and rotor position feedback. If the rotor fails to respond within a programmable timeout window, the driver flags a lock fault and cuts drive current, protecting both the motor winding and the power stage.
Phase and Hall Sensor Fault Detection
For three-phase brushless DC configurations, a new generation driver motor dc may also monitor the consistency of Hall sensor inputs or back-EMF zero-crossing timing. A missing or implausible sensor signal can indicate a sensor failure, open circuit in a phase winding, or MOSFET failure within the bridge. Identifying the specific fault type allows a maintenance technician to replace the correct component rather than the entire assembly.
How the Self-Diagnosis Mechanism Works
The intelligent fault self-diagnosis architecture in a modern driver motor dc typically combines three layers:
- Analog comparators operating at hardware speed, checking current, voltage, and temperature against fixed thresholds. These respond within nanoseconds and provide the first line of protection.
- Digital fault logic that classifies comparator outputs, applies debouncing or timeout windows, and determines whether a detected event is a transient (ignorable) or a sustained fault (actionable).
- Fault register and communication interface (typically SPI or I2C) that allows the host controller to read the driver's current fault status, clear latched faults, and configure protection thresholds during commissioning.
This three-layer approach means the driver can respond faster than any software loop while still giving the system controller the diagnostic detail it needs to make informed decisions about recovery, alerting, or shutdown sequencing.
Practical Implications for Fan and Motor Drive System Design
From a system design perspective, selecting a driver motor dc with comprehensive intelligent self-diagnosis functions shifts the maintenance model in a useful direction. Instead of discovering that a motor failed after the fact — when the load it was cooling has already tripped — operators receive a fault event at the driver level, with a timestamp and fault code that can be logged and analyzed.
For a high efficiency brushless pmdc motor operating as a cabinet cooling fan, this means distinguishing between a thermal fault caused by elevated ambient temperature, a current fault caused by a bearing becoming stiff, and a lock fault caused by foreign object obstruction — three conditions that look identical from the outside but require completely different responses.
Detecting the fault is only the first step; the real value is in making that information actionable for maintenance decisions.
What to Verify When Evaluating New Generation Driver Motor DC Products
When reviewing a driver motor dc product for intelligent fault self-diagnosis capability, look for the following in the datasheet:
- Whether overcurrent protection threshold is fixed or programmable
- The presence of a readable fault status register (not just a fault pin)
- Whether thermal protection behavior is adjustable or fixed-threshold only
- Lock detection timeout configurability
- Whether the driver supports auto-recovery or requires explicit fault clearing
- Communication interface options for integration with a host controller
For high speed bldc permanent magnet motor applications in particular, confirm that phase loss detection and Hall sensor fault detection are included — these are not universal across all driver families.
Summary
Intelligent fault self-diagnosis in a new generation driver motor dc is not a marketing term — it describes a genuinely different protection architecture compared to conventional motor controllers. By integrating overcurrent detection, thermal monitoring, undervoltage lockout, stall detection, and phase fault diagnosis into the driver itself, and making that information available through a readable status interface, these devices allow systems to respond faster, fail more predictably, and return better diagnostic information when faults occur.
Whether you are working with a low noise brushless pmdc motor in a residential appliance, a high efficiency brushless pmdc motor in an industrial cabinet fan, or a high speed bldc permanent magnet motor in an automation actuator, the driver motor dc you select will determine how visible and manageable fault events are across the product's service life.
