What overload protection setting range for brushless motor driver of industrial fans

Industrial fans rely on electronic speed control, and safety hinges on how overcurrent is bounded. A motor driver brushless for an industrial fan must survive steady running plus the brief, high-current events at switch-on and during a jam. The overload band is a design choice, not a number copied from a nameplate.

Why Overload Needs a Range, Not a Fixed Point

A single fixed trip point sounds simple yet fails in real fan duty. The reasons sit in the motor physics, the power stage, and the load the fan sees every day.

Rated phase current versus startup surge

The nameplate gives a rated phase current for continuous operation. A correctly tuned motor driver brushless does not treat that number as a wall. At switch-on, the impeller is at rest and the electronic commutator must accelerate it; inrush can reach several times the running phase current for a fraction of a second. If overload trips at the rated value, the fan never starts. A range that begins near rated phase current and rises to cover the surge lets the drive ride through normal startup while still catching a genuine fault.

Stall and locked-rotor behavior

When an impeller jams against debris or ice, the motor stops but the drive signal keeps pushing current. Locked-rotor current settles well above rated, and without stall protection the motor driver brushless and its power stage heat fast. The overload range must sit below the level that damages the copper and semiconductors, yet above the brief surge, so a true stall is caught in seconds rather than after insulation fails.

IGBT, MOSFET and heat-sink thermal limits

The switching devices — IGBTs or MOSFETs — and the heat sink around them define how much current the driver dissipates. A short circuit protection event or sustained overcurrent raises junction temperature; the thermal cutoff opens the drive before that temperature breaks the part. The overload setting depends on the thermal budget of the inverter cabinet, not only the motor. A larger heat sink or better airflow permits a higher ceiling; a cramped cabinet forces a lower one.

A Commissioning Case on an Inverter-Cabinet Fan Line

Field experience shows how the range resolves real commissioning pain, following a manufacturer that builds VFD cooling cabinets.

Background and problem — nuisance trips and a burnt driver

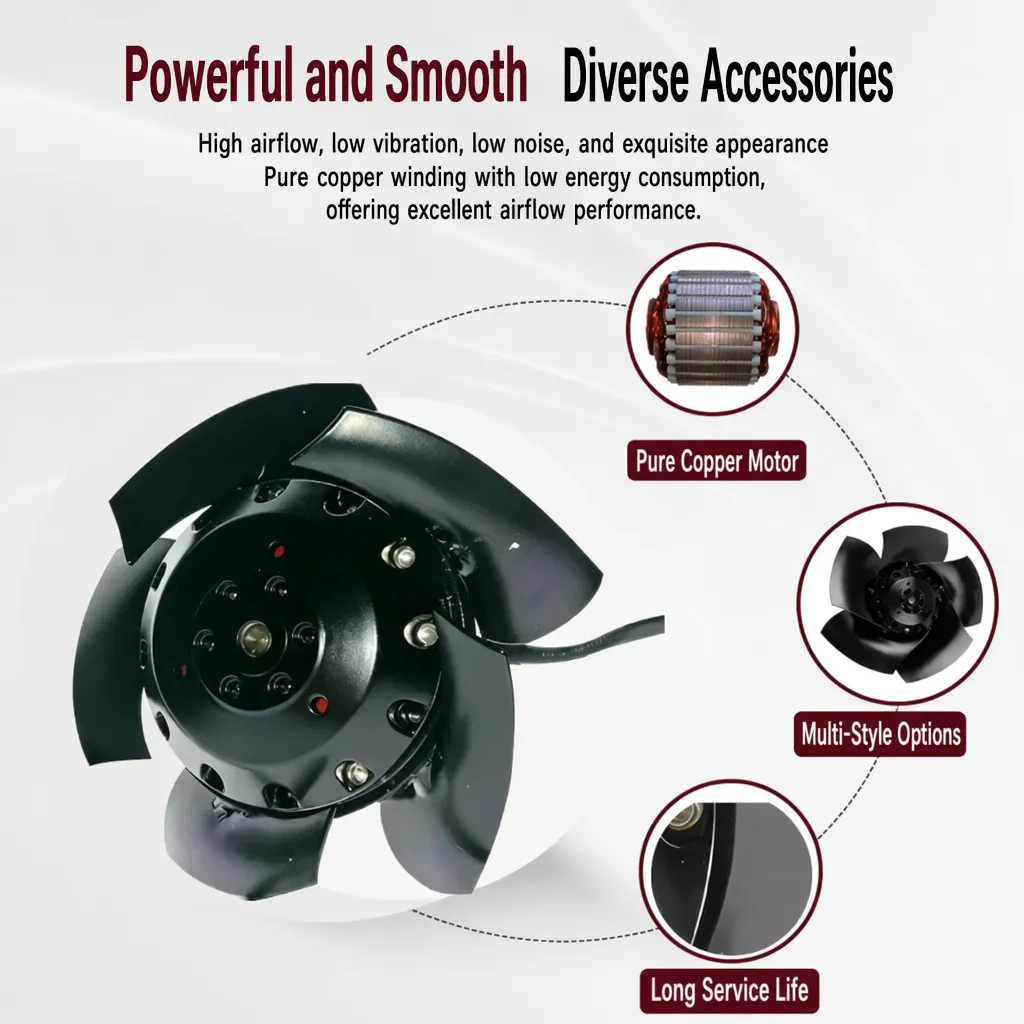

A VFD/inverter-cabinet manufacturer commissioning a fan line kept suffering nuisance trips and a burnt brushless driver during compressor and fan startup surge. The cabinets used K2E250-class filter fans and backward-curved impellers in a cooling loop shared with a compressor. Every start pulled a current spike that tripped protection, and on one unit the overload was set so tight that the motor driver brushless overheated and failed before the surge ended. Production stopped and a board was lost.

Solution and effect — a 120–150% range with soft-start

The team re-set the overload on the motor driver brushless at roughly 120–150% of rated current, added soft start to ramp the drive signal, and engaged a thermal-cutoff tied to the heat sink. Soft start stretched acceleration so the surge stayed inside the band; the thermal cutoff guarded slow heat buildup. After the change, commissioning stabilized: fans started cleanly, nuisance trips fell to near zero, and no further driver burned during compressor synchronization. The range, not a fixed point, absorbed the real-world surge.

How the Protection Functions Work

The range is only useful when the underlying functions are understood and set together.

Soft start, PWM control and the drive signal

Soft start limits how fast the PWM control raises the drive signal to the windings. By ramping duty cycle gradually, the phase current rises smoothly instead of snapping to a peak. A Hall sensor reports rotor position to the electronic commutator, which keeps the drive signal in the correct sequence. Fan speed regulation then trims the PWM to hold target airflow. The current limit caps the instantaneous value so a transient never exceeds the power stage rating. A motor driver brushless therefore relies on these functions staying aligned with the overload band.

Overcurrent threshold, thermal cutoff and stall protection

The overcurrent threshold defines the trip level inside the 120–150% band; it is the line a genuine fault crosses. Short circuit protection acts almost instantly on a hard fault, while stall protection watches for sustained high current with no speed feedback. Thermal cutoff monitors the heat sink and opens the drive if temperature climbs. Together these functions let the overload range stay wide enough for startup yet tight enough to protect the motor and driver.

Setup and Maintenance Advice

Practical setup keeps the range valid long after commissioning.

Sizing the heat sink and verifying phase current

Size the heat sink and the inverter cabinet ventilation for the worst-case current, not the average. Measure the phase current under a real start with the Hall sensor and logging, then confirm the overcurrent threshold sits inside the chosen band. Inspect the air filter and impeller for blockage each season, because a clogged filter raises load and pushes current toward the ceiling. Re-verify after any change to fan speed regulation or the drive signal profile. IEC motor-protection guidance and CE expectations support setting protection against the actual duty, not a generic table.

A motor driver brushless for industrial fans is protected not by a single trip point but by a tuned range that respects rated phase current, startup surge, stall, and the thermal limits of the IGBT, MOSFET and heat sink. Soft start, a sensible overcurrent threshold, thermal cutoff and stall protection work together inside an inverter cabinet to stop nuisance trips while catching real faults. Commissioning evidence and IEC-aligned practice both point to a 120–150% band as a practical starting point, adjusted for the heat sink and the actual load.

Frequently Asked Questions

Question

What does the overload range protect against on a brushless fan driver?

Answer: The range guards the power stage and motor against startup surge, stall, and sustained overcurrent. A band that starts near rated phase current and rises to cover the surge prevents nuisance trips while still catching a true fault. Setting it too low stops the fan at switch-on; setting it too high lets heat damage the windings and the semiconductors over time.

Question

Why is a fixed trip point a poor choice for fan duty?

Answer: Fan loads experience brief, high inrush at start and variable current under changing airflow. A fixed point either trips on normal surge or sits so high it misses a stall. A range absorbs the expected transient and still opens on genuine overcurrent. This matches real commissioning behavior far better than a single value copied from the nameplate without measurement.

Question

How should soft start be combined with the overload setting?

Answer: A motor driver brushless should use soft start to ramp the drive signal so phase current rises gradually instead of spiking. Set the overload band at roughly 120–150% of rated current, then let soft start keep the surge inside that band. The thermal cutoff guards slow heat buildup. This pairing reduces nuisance trips during compressor and fan startup without hiding a real fault.

Question

Can the same overload range work for every industrial fan?

Answer: No. The correct band depends on impeller type, rated phase current, heat-sink size, and inverter-cabinet airflow. A backward-curved centrifugal fan and an axial fan draw different surge profiles. Measure current under a real start, confirm the overcurrent threshold sits in band, and adjust for the heat sink. One generic setting risks either nuisance trips or missed protection on a different load.

Question

Which standards guide overload protection for these drivers?

Answer: IEC motor-protection guidance and CE requirements inform how overload, stall protection, and thermal cutoff are set for industrial equipment. They favor protection matched to the actual duty cycle rather than a generic fixed table. Following them helps the driver and fan meet safety expectations in European regulated markets without overstating real capability.
