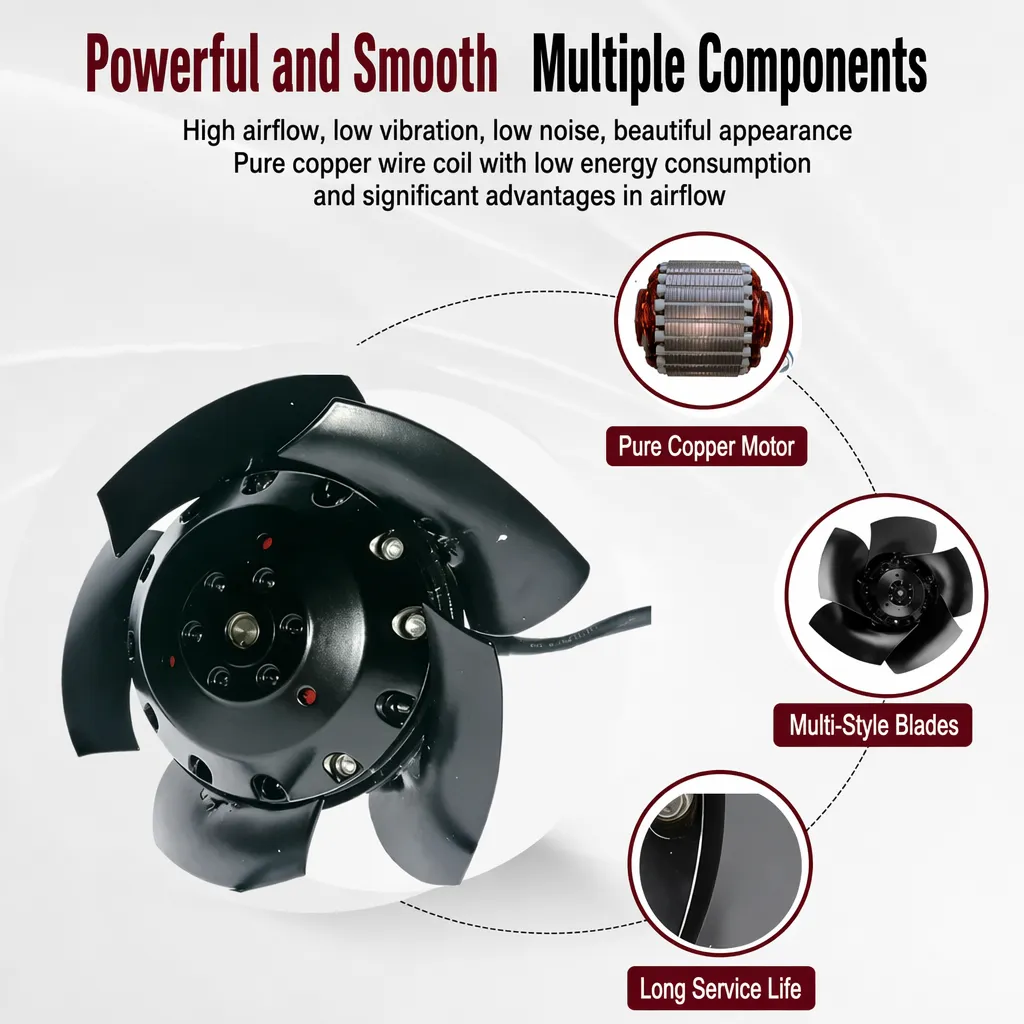

A cabinet fan keeps electrical enclosures within a safe temperature band, but the component that decides whether that fan survives years of continuous duty is the control electronics. A DC motor driver regulates voltage and current to the fan, and when it lacks proper safeguards the whole cooling loop fails silently. Understanding the protective functions a driver should carry helps procurement teams specify reliable cabinet fan equipment instead of replacing units after avoidable breakdowns.
A DC motor driver sits between the power supply and the fan motor, converting a raw DC bus into a controlled drive signal. It sets rotational speed through pulse-width modulation and reacts to load changes in milliseconds. In a cabinet fan, the driver also bridges the PMDC or brushless motor to the control system, so any weakness in the driver propagates directly to cooling performance. Specifying the right protection is therefore a design decision, not an accessory.
Enclosures in industrial plants face dust, vibration, ambient heat and unstable supply. Without protection, a momentary overcurrent can saturate the driver IC and lock the fan at standstill. Reverse-polarity wiring during maintenance is another frequent cause of burned control boards. An anonymized case from a panel-building workshop illustrates the risk: a control cabinet line used basic open-loop fans whose driver had no current limit. After a voltage spike from a nearby contactor, three fans stalled and the enclosure temperature climbed past the rated limit, tripping the protected equipment. The workshop replaced the fans with units carrying integrated overcurrent, thermal protection and EMC filtering. Following the change, unplanned fan replacements dropped and the line met its thermal budget without added spares.
Overcurrent protection caps the current the driver delivers when the fan meets mechanical resistance. A PMDC motor draws a high starting current, and a current limit circuit allows that surge briefly while clamping sustained overloads. For this reason the motor driver must allow a brief start surge while clamping sustained overloads to protect the windings and the driver IC. Without current limit, a jammed blade forces continuous high current that degrades the dc motor and the control stage until failure. A DC motor driver with active current limiting holds the fan inside safe operating bounds and reduces nuisance trips on the supply.
Thermal protection measures the junction temperature of the power stage. When heat exceeds a threshold, the driver enters thermal shutdown, cutting output until it cools. This protects both the driver and the dc motor from insulation damage. Combined with an enclosure rated for the ambient, thermal protection keeps the cabinet fan running through heat waves rather than failing at the worst moment. For cabinet duty, the DC motor driver should report or latch a thermal fault so maintenance can act before repeat shutdowns damage the bearings.
A short circuit protection function detects a low-impedance path and isolates the output within microseconds, preventing fire and board damage. Overvoltage protection clamps surge from inductive loads or bad regulation. Reverse-polarity protection uses a series element so that wrong wiring during service does not destroy the board. A DC motor driver that combines these three functions resists the harsh conditions found in field cabinets and reduces mean time to repair. Together they stop the most common installation and fault events from becoming total losses.
Switching a dc motor generates conducted and radiated noise. EMC filtering inside the driver, plus a screened enclosure, keeps that noise from disturbing sensors and communication on the same panel. EN 61800-3 sets EMC emission and immunity limits for adjustable-speed drives, so compliant filtering is part of correct design rather than optional. Proper IP-rated enclosure and cable routing further reduce interference and ingress.
A soft-start ramps voltage gradually, avoiding inrush current that stresses bearings and contacts. PWM control varies speed efficiently, matching airflow to load and improving efficiency. Stall detection monitors back-EMF or current signature; when the fan stops but current flows, the driver flags a fault and can shut down. A DC motor driver that integrates soft-start, PWM and stall detection extends bearing life and warns maintenance before thermal runaway. These functions turn a passive fan into a self-reporting cooling asset.
Several standards frame driver protection. IEC 61800 covers adjustable-speed motor drives, while UL 61800 and NFPA 79 address electrical safety in industrial control equipment. ISO 13849 guides the safety-related parts of control systems. For procurement, specify drivers with documented overcurrent, thermal and short-circuit protection, request CE and UKCA documentation, and verify the enclosure rating matches the site. A qualified DC motor driver supplier provides the test records and drawings that let panel-builders validate the design. Inspect for clean soldering and shielded cables; maintain by cleaning filters and checking current draw during scheduled downtime.
A cabinet fan is only as dependable as the electronics controlling it. A DC motor driver with layered protection—overcurrent, thermal shutdown, short-circuit, reverse-polarity, EMC filtering, soft-start and stall detection—turns a vulnerable point into a managed asset. Specifying these functions against IEC 61800 and EN 61800-3, then inspecting and maintaining on a schedule, keeps enclosure cooling stable across the service life.
What protective functions should a DC motor driver include for cabinet fans?
Answer: A reliable unit needs overcurrent and current-limit, thermal shutdown, short-circuit, overvoltage and reverse-polarity protection, plus EMC filtering, soft-start and stall detection. These functions stop the fan from failing during supply disturbance, jam or heat. Specify them against IEC 61800 and verify documentation. Units lacking these safeguards tend to fail silently and force unplanned replacements that cost more than the protection itself.
Why does thermal shutdown matter in enclosure cooling?
Answer: Thermal shutdown cuts driver output when the power stage overheats, preventing insulation damage in the dc motor and burned control boards. In a sealed enclosure, heat has nowhere to escape, so a hot day or blocked filter pushes temperatures past limits quickly. With thermal protection the fan pauses safely and resumes after cooling, avoiding catastrophic failure during peak load.
How does stall detection improve fan reliability?
Answer: Stall detection watches the current or back-EMF signature and identifies when the blade stops while power flows. The driver then raises a fault instead of cooking the windings. Maintenance can act before thermal runaway. This protects the PMDC or brushless motor and keeps the enclosure within its thermal budget, reducing unexpected downtime on critical control panels.
Can EMC filtering reduce interference in control cabinets?
Answer: Yes. Switching a dc motor creates conducted and radiated noise that can disturb nearby sensors and communication lines. Built-in EMC filtering, guided by EN 61800-3 limits, contains that noise at the source. A screened enclosure and proper cable routing add further isolation. The result is stable control signals and fewer nuisance trips on sensitive equipment sharing the same cabinet.
Which checks matter when inspecting a fan driver?
Answer: Inspect for clean soldering, shielded cable entries and an enclosure rating matched to the site. Verify the documented overcurrent, thermal and short-circuit protection, and confirm CE or UKCA paperwork. During scheduled downtime, clean the filter and measure current draw against the nameplate. A rising trend signals wear before failure, letting maintenance replace the unit on plan rather than during an emergency.
