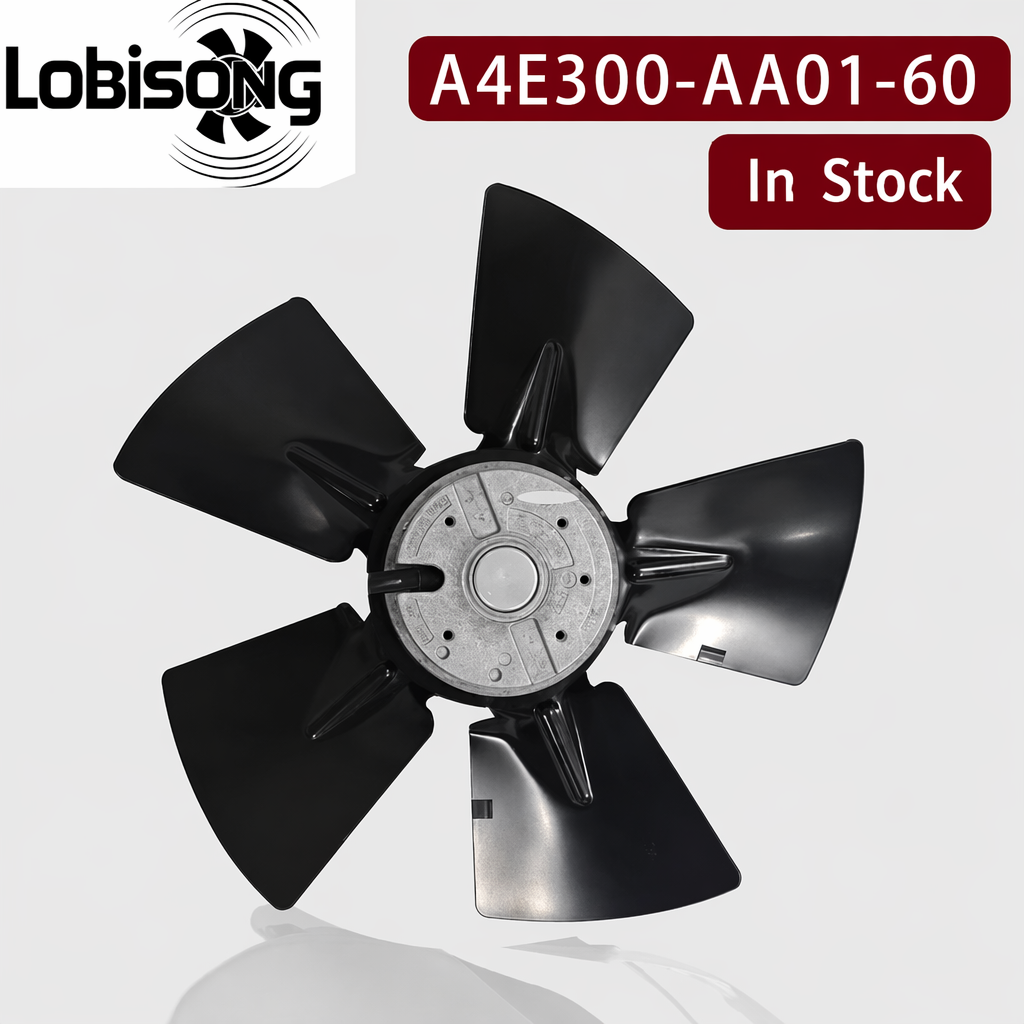

The A4E300-AA01-60, A4E300-AT16-11, A4Q300-BN01-05, and A4E300-AE20-06 are industrial AC fan assemblies developed for equipment ventilation, cabinet airflow, machinery cooling, and direct axial air movement through defined enclosure openings. This Industrial AC Fan group is intended for B2B buyers, maintenance teams, panel builders, and equipment manufacturers who need to compare a selected fan with real installation conditions before ordering.

An Industrial AC Fan works as part of an airflow system rather than as an isolated component. In a cabinet, control panel, machinery housing, or industrial electronics enclosure, air needs a usable route from the intake side to the exhaust side. The selected fan can introduce ambient air into the enclosure or help remove warmer internal air, depending on its orientation and the completed equipment layout.

Actual airflow in the finished equipment is affected by more than the fan itself. Filters, guards, louvered panels, cable bundles, internal partitions, ducts, and restricted openings can create resistance. For that reason, a Brushless Outer Rotor Fan should be matched with the full enclosure design, including the available clearance, airflow direction, mounting arrangement, and maintenance access.

Four Industrial AC Fan References: This product group includes A4E300-AA01-60, A4E300-AT16-11, A4Q300-BN01-05, and A4E300-AE20-06 for application-specific comparison.

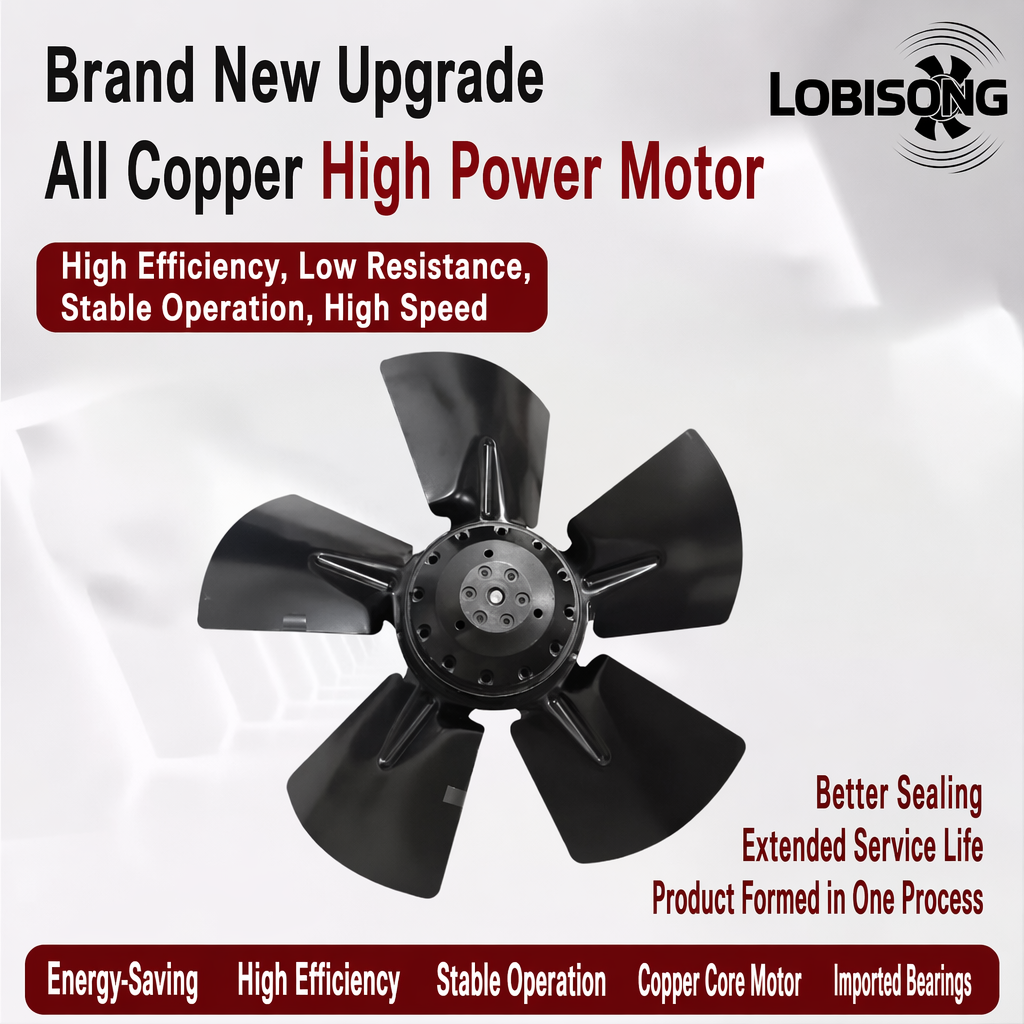

Brushless Outer Rotor Motor Structure: The permanent-magnet outer rotor arrangement integrates the motor and fan assembly in a compact format for direct axial airflow duties.

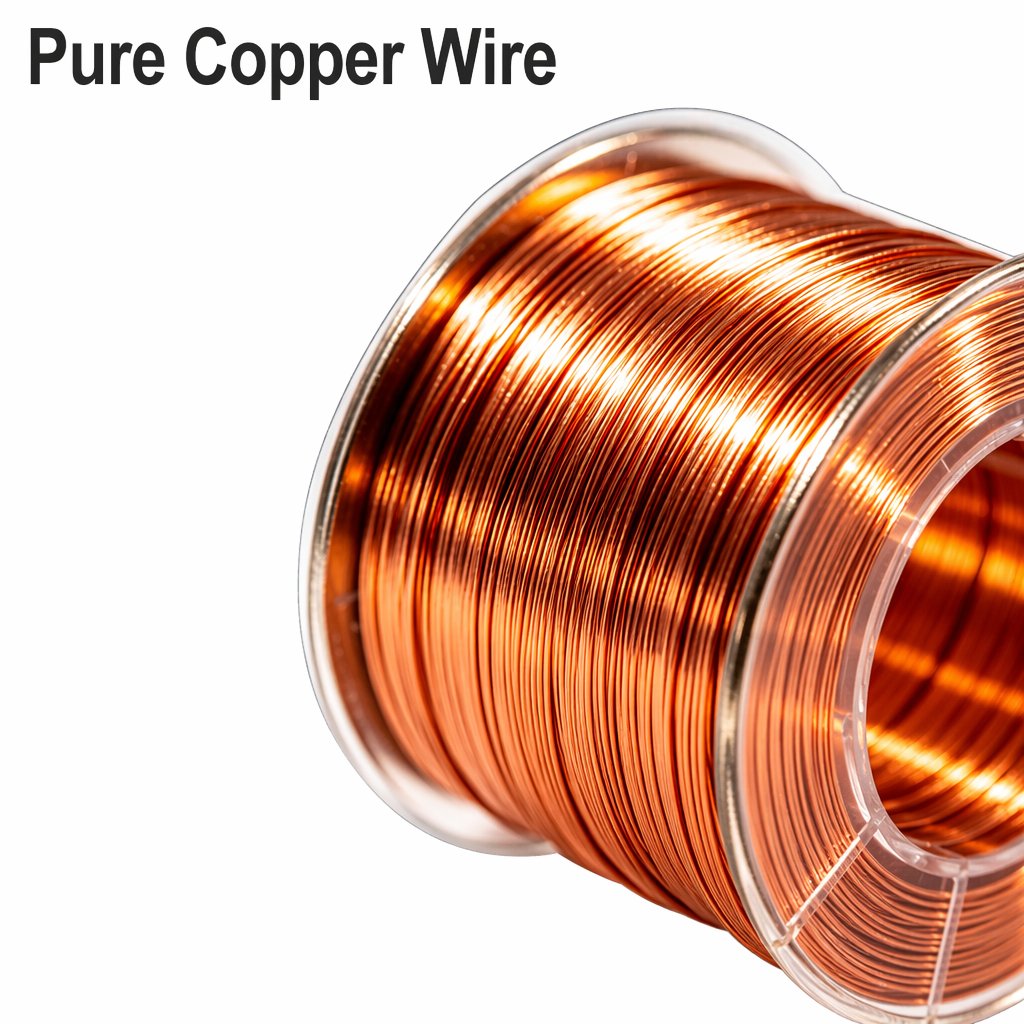

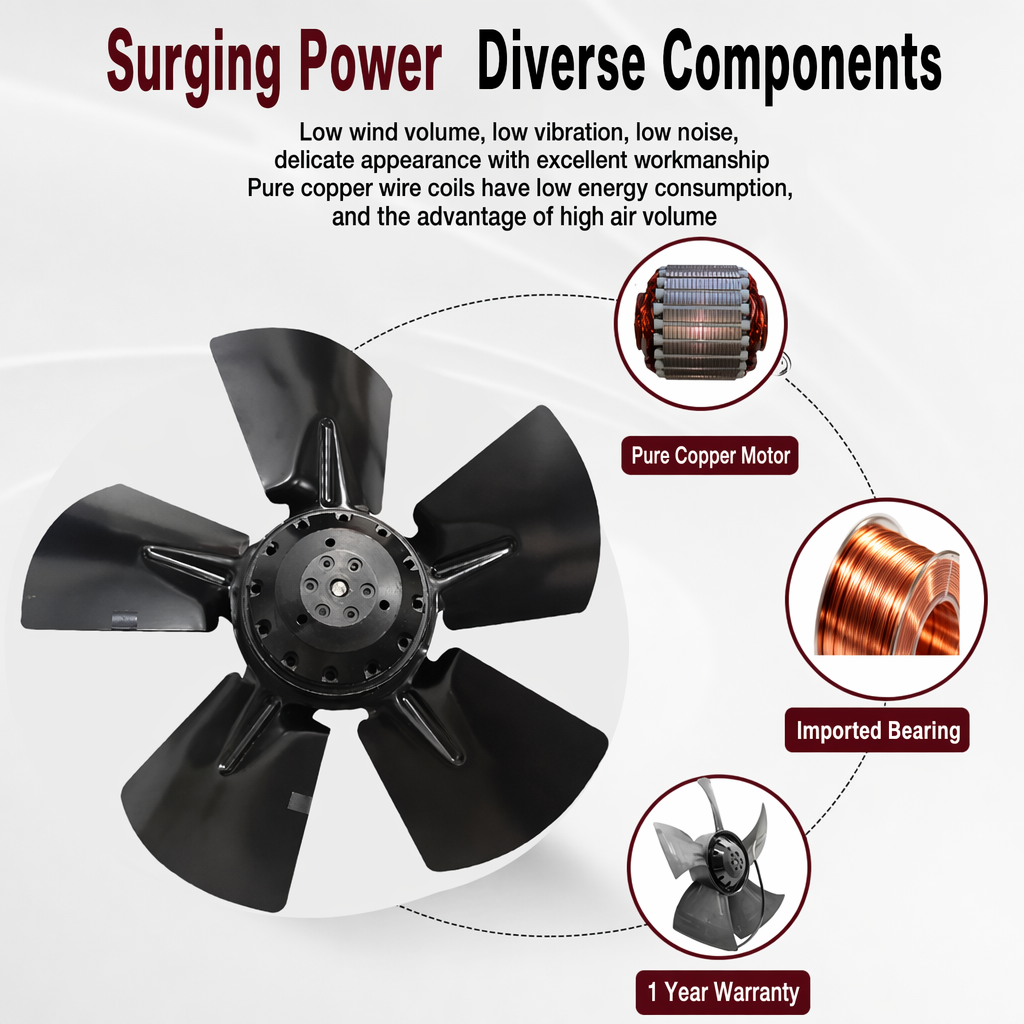

Pure Copper Windings: Copper winding material is specified as a confirmed construction feature for the series.

Imported Precision Bearing Support: The series includes imported precision bearing support as part of its mechanical arrangement.

IP44 Cooling Fan Protection: IP44 protection is specified for applicable equipment environments. The protection level of the finished system should be reviewed separately.

Engineering Documentation: Technical parameter sheets, CAD drawings, performance curves, wiring references, and CE and UKCA documentation support selection and installation planning.

The table summarizes confirmed family-level information only. Electrical ratings, dimensions, mounting details, connection arrangements, and performance values should be confirmed from the documentation for the exact model reference. This is particularly important when a Copper Motor Fan is selected as a replacement for an existing unit.

This Industrial AC Fan group can be evaluated for equipment that requires direct airflow through a defined ventilation route. Typical applications include electrical cabinets, control panels, automation equipment, industrial computer enclosures, machinery housings, switchgear spaces, and related cooling or air-circulation assemblies.

For cabinet ventilation, the selected fan may be used as an intake or exhaust component when the panel layout supports a clear route through the enclosure. In machinery housings, the mounting opening, nearby components, guard arrangement, wiring route, and available space should be checked before installation. In industrial electronics enclosures, the location of heat-producing components and the path to the exhaust opening should be included in the review.

For procurement and engineering teams, clear model identification supports a more efficient sourcing process. The four references in this group can be compared against a project’s actual mounting conditions, electrical requirements, connection arrangement, and airflow direction. This approach helps avoid selection based only on an image or an approximate outline.

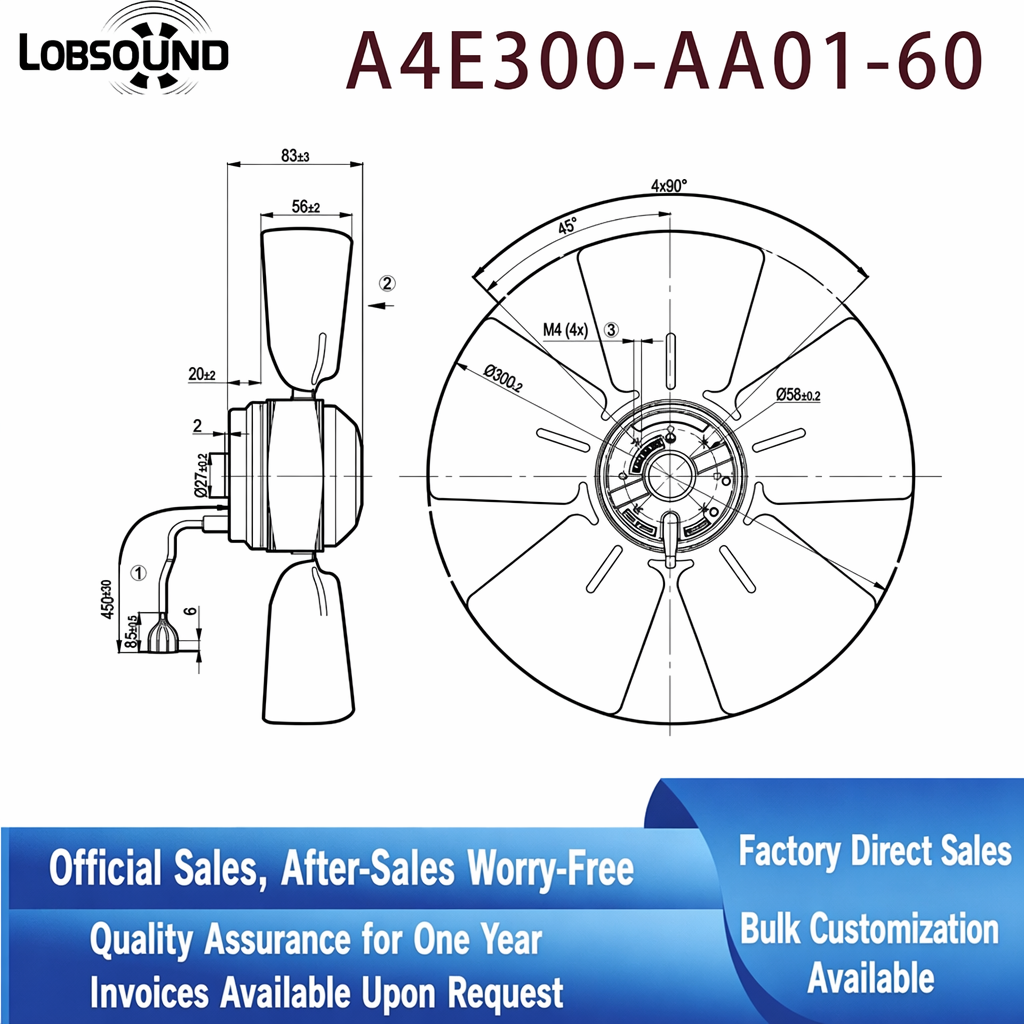

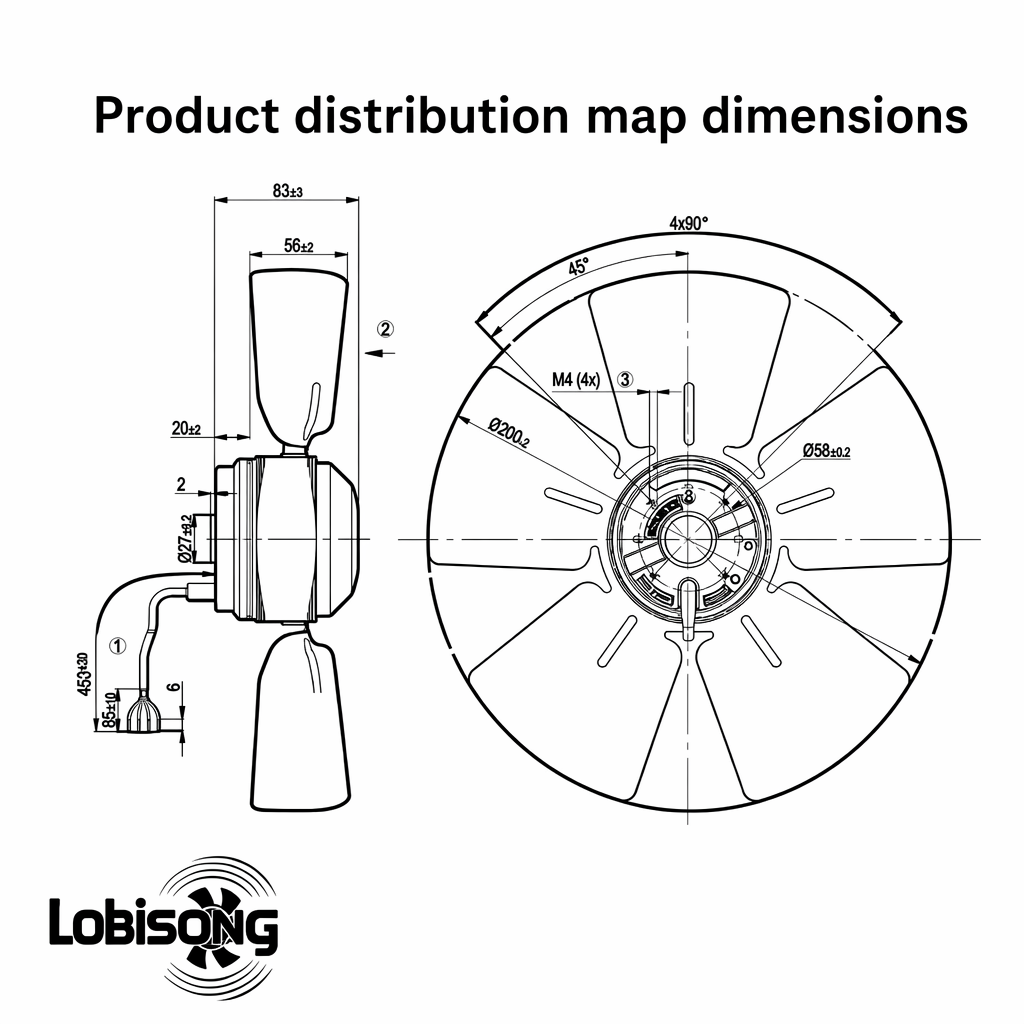

Technical documentation supports collaboration between purchasing, design, maintenance, and quality teams. CAD drawings can help review mounting-hole positions, installation thickness, connection locations, and equipment clearance. Performance curves can be reviewed together with the airflow resistance created by the completed enclosure. Wiring references support a review of the connection arrangement for the selected model.

A fan’s role should be reviewed in the context of the full airflow path. Even a correctly selected Brushless Outer Rotor Fan may have limited airflow at the intended location if the intake opening is narrow, protective guards are restrictive, cable routing is dense, or internal partitions block movement through the enclosure.

A practical review begins by confirming whether the selected fan will operate as an intake or exhaust unit. Then review the fan orientation, the position of heat-producing components, the intake area, the exhaust opening, and service access. Air should be able to pass across the area that requires ventilation and leave through an appropriate route rather than returning immediately to the intake side.

CAD drawings help verify physical fit, while the relevant technical data should be used to assess the selected model against the actual ventilation path. This evidence-based approach supports more informed use of an IP44 Cooling Fan in industrial equipment.

Which models are included in this product group?
The listed models are A4E300-AA01-60, A4E300-AT16-11, A4Q300-BN01-05, and A4E300-AE20-06.

What construction features are confirmed for the series?
The group is specified with a permanent-magnet brushless outer rotor motor structure, pure copper windings, imported precision bearing support, IP44 protection, and direct axial airflow.

What should be checked before ordering?
Confirm the exact reference, electrical requirements, mounting layout, connection arrangement, airflow direction, available clearance, installation environment, and applicable technical documentation.

Can these fans be used as intake or exhaust units?
The final role depends on the selected reference, orientation, and completed equipment layout. Confirm the airflow direction and ventilation route before installation.
