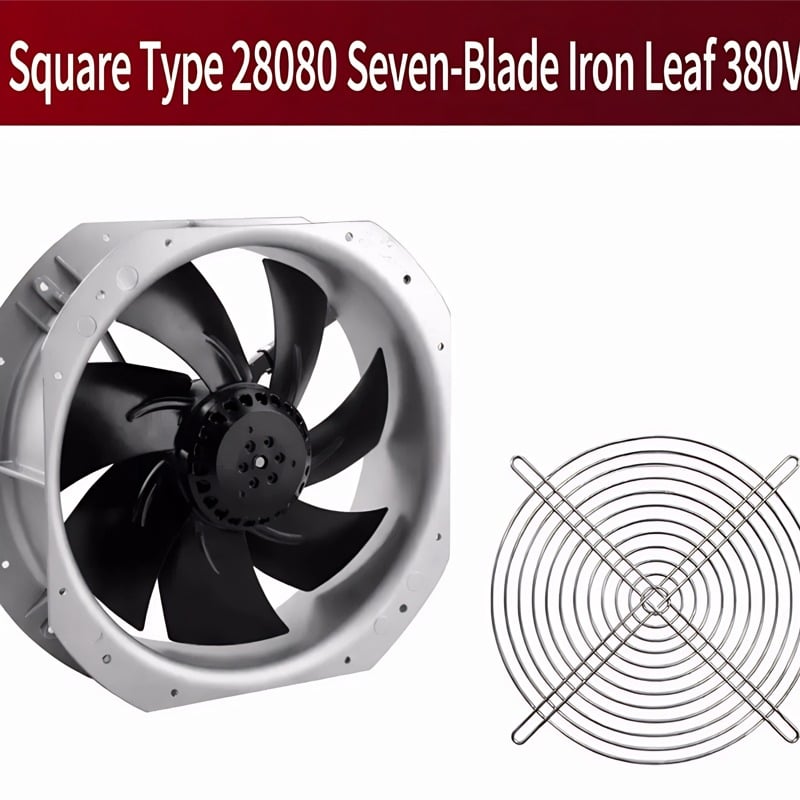

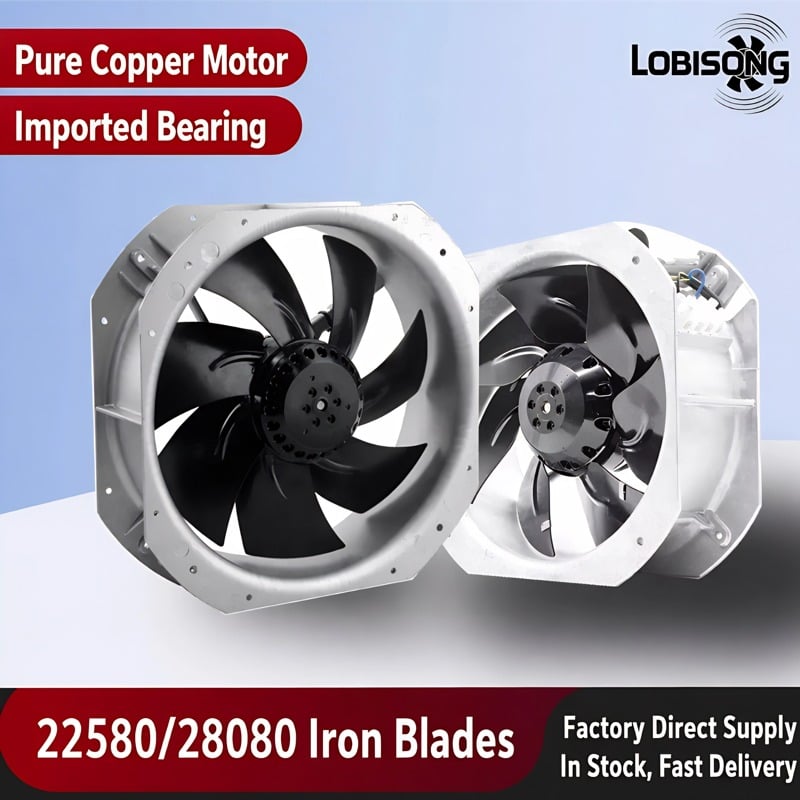

The External Rotor Axial Fan is designed for motor cabinet cooling, industrial ventilation, equipment heat dissipation, and other applications that need direct, continuous airflow. The 2580 and 28080 series combines a 380V external rotor motor, pure copper windings, a metal fan structure, and a straight-through axial air path. It is intended for buyers who need a compact cooling component for cabinet openings, machinery housings, ventilation equipment, and electrical enclosures. The external rotor axial fan structure supports practical airflow management where installation depth, airflow direction, and mounting compatibility all matter.

Its axial construction moves air directly through the fan, helping systems introduce air into an enclosure or discharge warm air from it. Precision bearing support and a metal construction intended for elevated-temperature equipment environments help make this motor cabinet cooling fan suitable for applications that require stable air movement during extended operating periods.

An external rotor axial fan uses a motor arrangement in which the rotor sits around the stator. The fan wheel and motor are integrated into a compact assembly, a layout commonly used in industrial cooling equipment where space, airflow direction, and mounting compatibility need to be considered together.

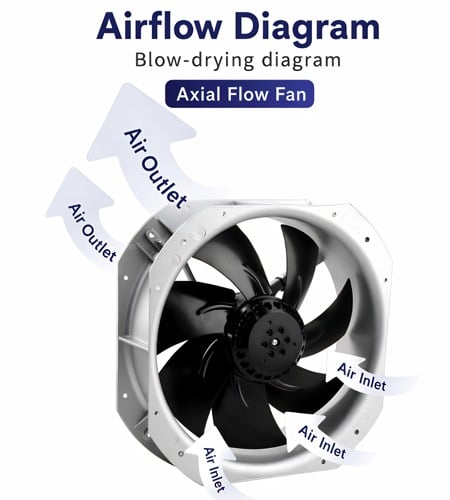

The 2580 and 28080 series uses direct axial airflow. Air moves through the fan in the direction of its shaft, making this industrial ventilation fan suitable for cabinet panels, ventilation openings, cooling equipment, and machinery enclosures. An axial fan is generally selected when an installation needs straightforward intake or exhaust airflow rather than a duct-focused discharge path.

The motor uses copper windings and an outer rotor permanent-magnet brushless structure. Buyers should confirm the required model, voltage, mounting dimensions, airflow direction, and equipment opening before placing an order.

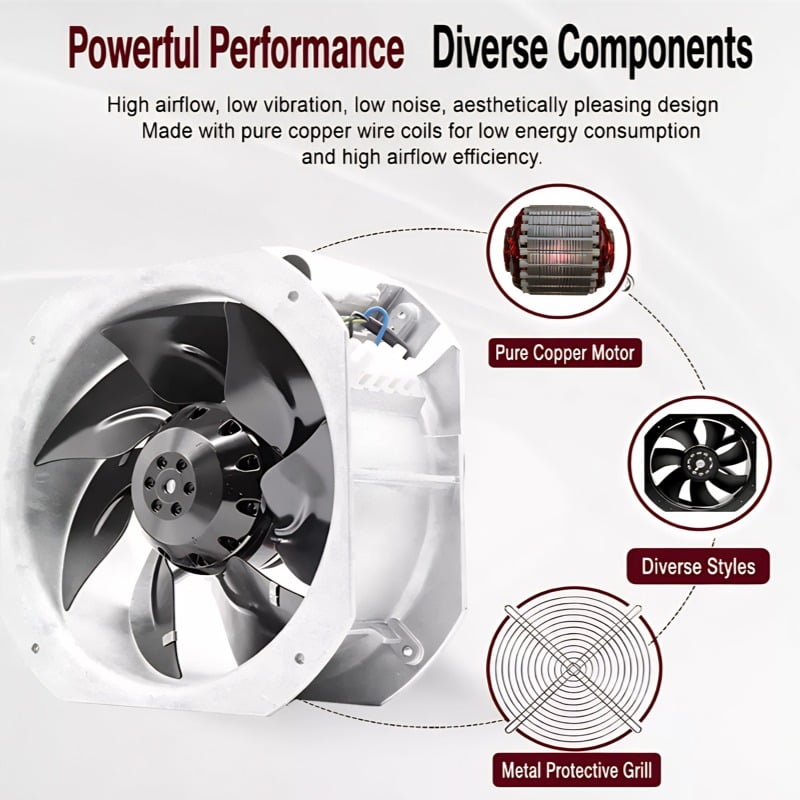

Pure Copper Winding Motor: The external rotor axial fan uses a copper winding motor structure designed for stable electrical operation and a compact fan assembly.

Straight-Through Axial Airflow: The axial design moves air directly through the fan to support intake or exhaust ventilation for cabinets, equipment housings, and industrial installations.

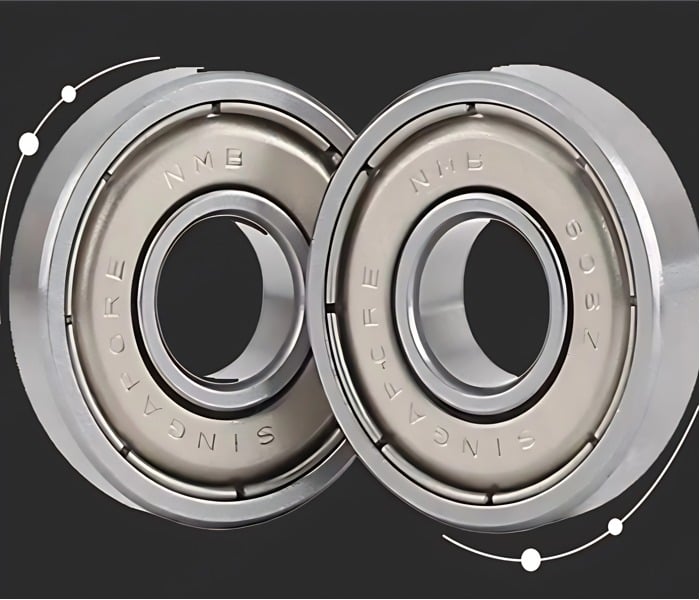

Precision Bearing Support: A high-density bearing assembly supports smooth rotation and is designed to help control vibration and operating noise during continuous use.

Metal Fan Construction: The fan uses a metal structure intended for industrial and elevated-temperature equipment environments.

External Rotor Configuration: The motor and fan wheel are integrated in a compact form that can suit panel-mounted and cabinet-based cooling systems.

Model Selection Support: Technical parameter references and CAD dimensional drawings help teams compare configurations for equipment matching.

For equipment builders, a useful advantage of an external rotor axial fan is the combination of compact installation and direct airflow. It can bring outside air into a cabinet, move air across internal components, or remove warm air from an enclosure. Actual system results depend on the selected model, cabinet opening, internal heat load, filters, airflow resistance, and ambient conditions.

Exact electrical and airflow values vary by selected model. Please refer to the applicable technical parameter sheet and CAD drawing before confirming a fan configuration.

Before selecting a 380V axial fan, engineering teams should check voltage, power, rotation speed, airflow, static pressure, noise level, overall dimensions, mounting-hole distance, and fan-wheel diameter against the actual product documentation.

The external rotor axial fan can be considered for industrial and commercial ventilation scenarios where equipment requires directional airflow and heat dissipation.

• Server Rooms and Electrical Cabinets: Supports airflow in enclosures where internal components generate heat during operation.
• Hotel Kitchens and Commercial Ventilation: Can be integrated into equipment needing direct intake or exhaust airflow.
• Large Office Areas: Suitable for commercial ventilation equipment and air circulation systems using axial fan assemblies.
• Tunnel Ventilation Equipment: Can be considered for systems requiring durable metal fan components and directional airflow.
• Agricultural and Livestock Facilities: Supports ventilation equipment used in barns, sheds, and controlled-environment spaces.
• Chemical and Industrial Factories: May be used for equipment cooling and enclosure ventilation when the model matches operating conditions.

For high humidity, corrosive substances, heavy dust, or unusually high ambient temperatures, buyers should confirm site conditions and the required protection level before selection. Intake area, exhaust area, internal obstruction, and maintenance access should also be reviewed during installation planning.

For B2B buyers, selecting a motor cabinet cooling fan involves more than fan size. The product must fit the equipment opening, match the available electrical supply, deliver airflow in the required direction, and work within the physical limits of the enclosure. Multiple model options help procurement and engineering teams compare the technical characteristics needed for different equipment layouts.

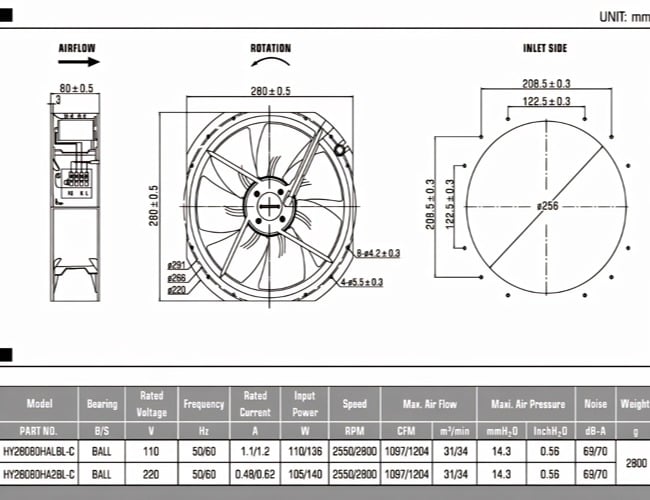

Technical parameter sheets provide a structured way to compare voltage, power, rotation speed, airflow, static pressure, and operating noise across available models. CAD dimensional drawings provide another reference by showing overall dimensions, mounting-hole distance, and fan-wheel diameter. Together, these documents help reduce uncertainty during panel design, equipment assembly, replacement planning, and volume sourcing.

When selecting an industrial ventilation fan, review the airflow path first. An axial fan is commonly used where air needs to move directly through an opening, panel, or enclosure. It may be installed as an intake unit to bring cooler ambient air into a cabinet, or as an exhaust unit to discharge warm internal air. The appropriate direction depends on cabinet layout and the location of heat-generating components.

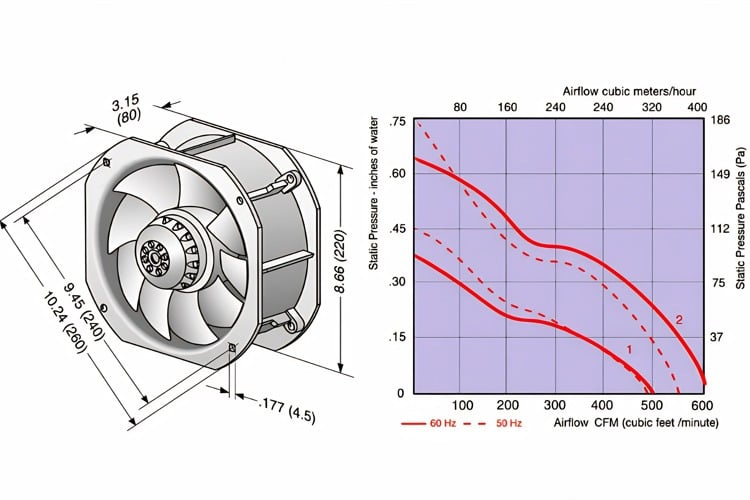

System resistance also matters. Filters, vents, guards, narrow openings, and densely arranged components can affect airflow. Engineering teams should therefore use documented airflow and static-pressure data rather than fan dimensions alone. Reviewing mounting dimensions and electrical requirements before installation helps establish a practical match between the external rotor axial fan and the equipment it supports.

Q1: What is an external rotor axial fan?
An external rotor axial fan uses a motor design in which the rotor surrounds the stator. The fan wheel is integrated with the motor assembly to create a compact structure that supports direct axial airflow.

Q2: What information is needed before selecting a 380V axial fan?
Please confirm the required model, voltage, power, rotation speed, airflow, static pressure, noise level, mounting-hole distance, overall dimensions, and fan-wheel diameter using the applicable technical sheet and CAD drawing.

Q3: Can this fan be used for motor cabinet cooling?
Yes. This external rotor axial fan is intended for cabinet cooling, equipment ventilation, and industrial heat-dissipation applications. The selected model should match the cabinet opening, airflow direction, and electrical configuration.

Q4: Are installation drawings available?
CAD dimensional drawings are available by model to help engineering teams check overall dimensions, mounting-hole spacing, and fan-wheel size before equipment installation or replacement planning.
