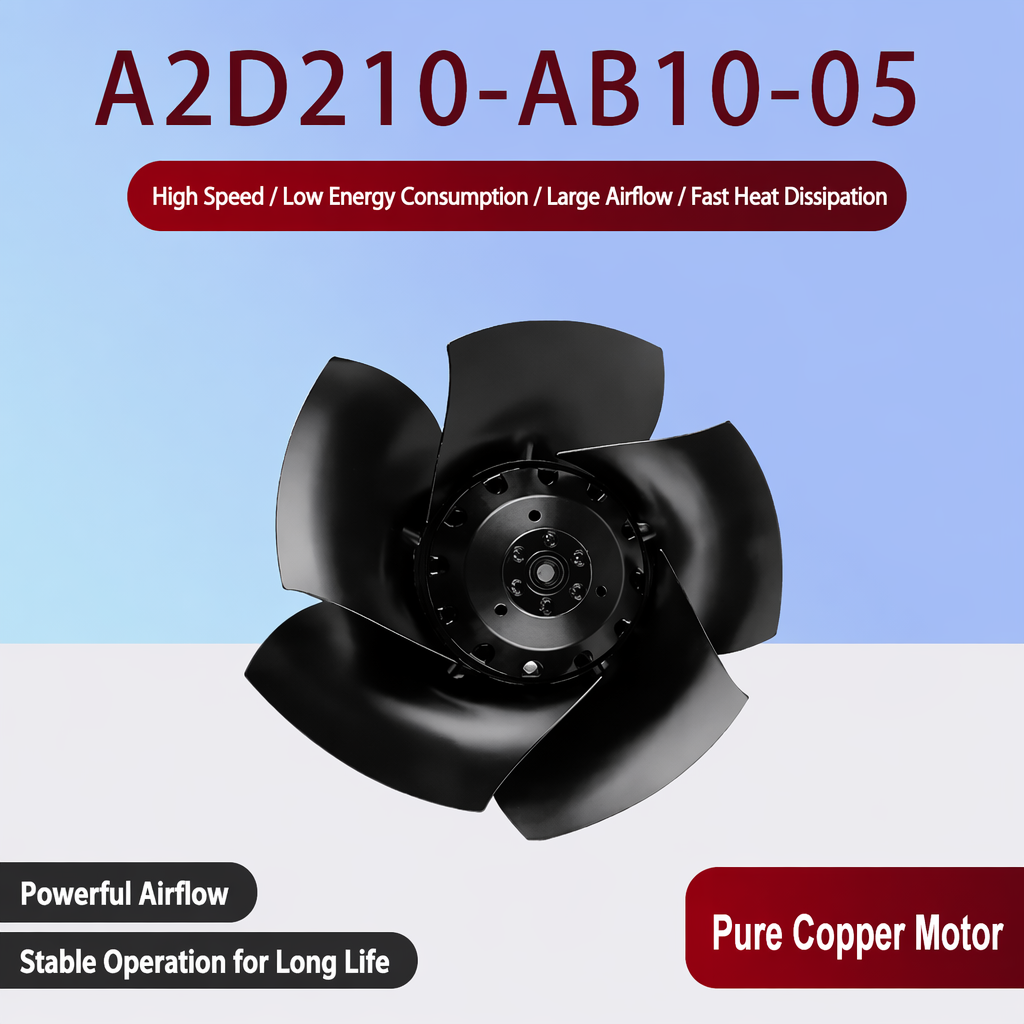

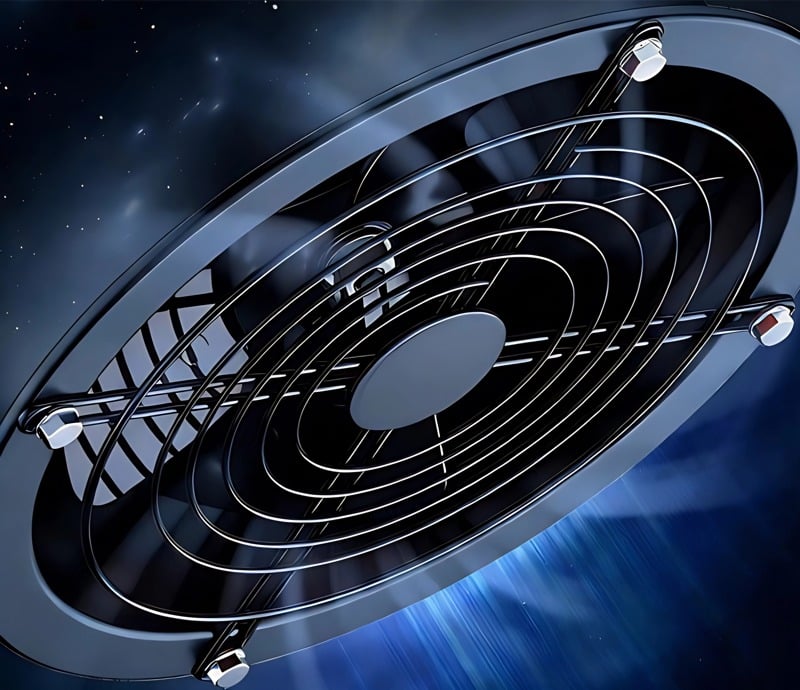

The 210mm Axial Cooling Fan is designed for industrial motor cooling, equipment ventilation, cabinet airflow, and heat dissipation in enclosed machinery. The A2D210-AB10-05 and M2D068-CF fan references share the confirmed specification set of 400V, 0.21A, 60W, 2800 RPM, and 580 m³/h airflow. With an 8.3-inch, or 210mm, axial fan format, this product is intended for installations that require direct airflow through motor housings, machine covers, ventilation openings, and equipment enclosures.

For industrial equipment, stable airflow is an important part of thermal management. This axial cooling fan moves air directly through the fan opening, making it suitable for intake or exhaust positions where a clear airflow path is required. Its pure copper motor winding material and precision bearing support are intended to support regular operation in equipment cooling applications. Before selecting a model, buyers should confirm the electrical supply, mounting arrangement, fan diameter, airflow direction, and equipment layout.

An axial cooling fan moves air generally parallel to the direction of its shaft. This airflow method is useful when a system needs air to pass directly through a motor cover, panel opening, cabinet wall, or machinery enclosure. The A2D210-AB10-05 and M2D068-CF references use a 210mm axial fan format, allowing maintenance teams and equipment builders to compare the fan with existing openings, motor cooling positions, and enclosure ventilation layouts.

The confirmed electrical specification is 400V with a rated current of 0.21A and rated power of 60W. The fan operates at 2800 RPM and has a rated airflow volume of 580 m³/h. These parameters are relevant when evaluating a motor cooling fan because the electrical supply and airflow requirement must both align with the equipment. A suitable installation also depends on the clear area around the fan, the size of the ventilation opening, the air path inside the equipment, and any filters, guards, or obstructions that may affect airflow.

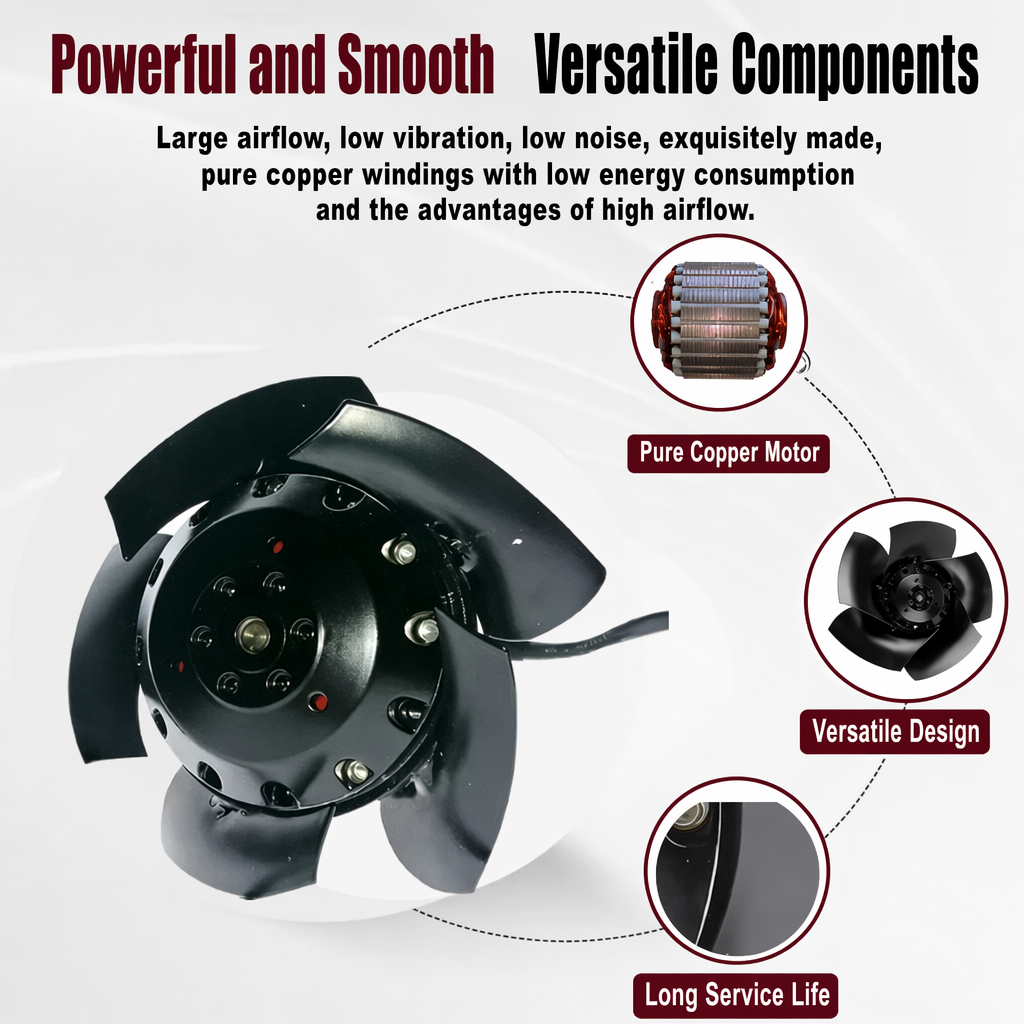

The motor uses pure copper windings, and the fan is described with a high-density precision bearing arrangement. Copper winding material is commonly used in motor assemblies because of its electrical conductivity. Bearing support helps the rotating assembly operate smoothly during regular use. The final performance of any axial fan is influenced by the complete system, including ambient conditions, internal heat load, protective components, and resistance created by the installation.

210mm Axial Fan Format: The 8.3-inch fan size offers a practical reference for motor housings, equipment panels, machinery covers, and ventilation openings.

400V Electrical Rating: Both listed model references use the confirmed 400V operating specification for industrial equipment matching.

60W Rated Power: The 60W power rating provides a clear reference for electrical planning and replacement evaluation.

2800 RPM Operating Speed: The fan operates at 2800 RPM to provide direct airflow for motor and enclosure cooling positions.

580 m³/h Airflow Volume: The confirmed airflow figure helps engineering teams compare the fan with the ventilation requirements of their equipment.

Pure Copper Motor Windings: The motor assembly uses pure copper winding material as part of its electrical drive structure.

Precision Bearing Support: The bearing arrangement is intended to support smooth rotation and help manage vibration and operating noise.

For an industrial ventilation fan, the fan diameter alone is not enough for correct selection. Voltage, current, power, speed, airflow volume, mounting dimensions, and air direction should be reviewed as a complete group. A well-planned airflow path allows cooling air to reach the intended components rather than circulate around restricted areas inside the enclosure.

The following table summarizes the confirmed data shared by the A2D210-AB10-05 and M2D068-CF models. Please use the applicable equipment drawing and product documentation to confirm installation details before ordering or replacement.

Before installation, verify the model reference, 210mm fan diameter, 400V supply, rated current, power requirement, fan speed, airflow requirement, mounting-hole position, overall dimensions, and intended airflow direction. These checks help reduce fitment uncertainty when the fan is used in an existing equipment position or a new enclosure design.

The A2D210-AB10-05 and M2D068-CF axial cooling fan series can be considered for industrial applications that require direct airflow around motors, electrical assemblies, and enclosed equipment components.

• Spindle Motor Cooling: Supports airflow around spindle motor housings used in machine tools and related industrial equipment.
• Servo Motor Ventilation: Can be used in suitable servo motor cooling positions within automation and motion-control systems.
• Electrical Cabinet Cooling: Supports intake or exhaust airflow in motor control cabinets, drive enclosures, and equipment panels.
• Machine Enclosure Ventilation: Suitable for machinery housings that use a compatible 210mm ventilation opening.
• Industrial Equipment Heat Dissipation: Can support cooling arrangements where the electrical rating, installation geometry, and airflow direction match equipment requirements.

Each application should be assessed according to its own ventilation path. A motor housing may require air to pass over a specific surface, while an electrical cabinet may need a clear route from intake to exhaust. Filters, guards, louvered panels, internal wiring, and nearby components can influence the effective airflow through an installation.

For B2B buyers, the value of an industrial axial cooling fan lies in accurate equipment matching. The A2D210-AB10-05 and M2D068-CF references provide a documented set of diameter, voltage, current, power, speed, and airflow values. These parameters give purchasing, maintenance, and engineering teams a practical basis for comparing the fan with an existing cooling position or planned machinery design.

Technical parameter sheets help users review electrical and airflow data, while CAD dimensional drawings help confirm physical installation. Checking the fan outline, mounting holes, and available enclosure space before replacement can help prevent a fan from being selected only by appearance. This documentation-based approach is useful for motor cooling and electrical equipment maintenance projects.

Effective motor cooling depends on the path that air follows through the equipment. Axial fans are commonly selected where air needs to move directly through a panel, fan cover, motor housing, or enclosure opening. When installed as an intake unit, the fan can direct ambient air toward warmer components. When installed as an exhaust unit, it can help move warm internal air out of the enclosure.

System resistance should be considered during planning. Protective guards, filters, louvered panels, narrow passages, and densely arranged components can reduce the airflow available at the target area. For this reason, selection should be based on both the confirmed 580 m³/h airflow value and the actual installation design. Reviewing the equipment layout and intended airflow direction helps establish a practical cooling arrangement.

Q1: What are the A2D210-AB10-05 and M2D068-CF used for?
These model references are 210mm axial cooling fans for industrial motor cooling, servo motor ventilation, electrical cabinet airflow, and machinery heat-dissipation applications.

Q2: What are the confirmed electrical and performance specifications?
Both listed models use the confirmed 400V, 0.21A, 60W, 2800 RPM, and 580 m³/h specification set.

Q3: Can this fan be used for spindle or servo motor cooling?
It can be considered for spindle and servo motor cooling when the model reference, 210mm size, electrical supply, mounting arrangement, and airflow direction match the equipment requirements.

Q4: What should be checked before replacement?
Confirm the model reference, fan diameter, voltage, current, power, speed, airflow requirement, mounting dimensions, equipment opening, and intended intake or exhaust airflow direction using the applicable technical documentation.
