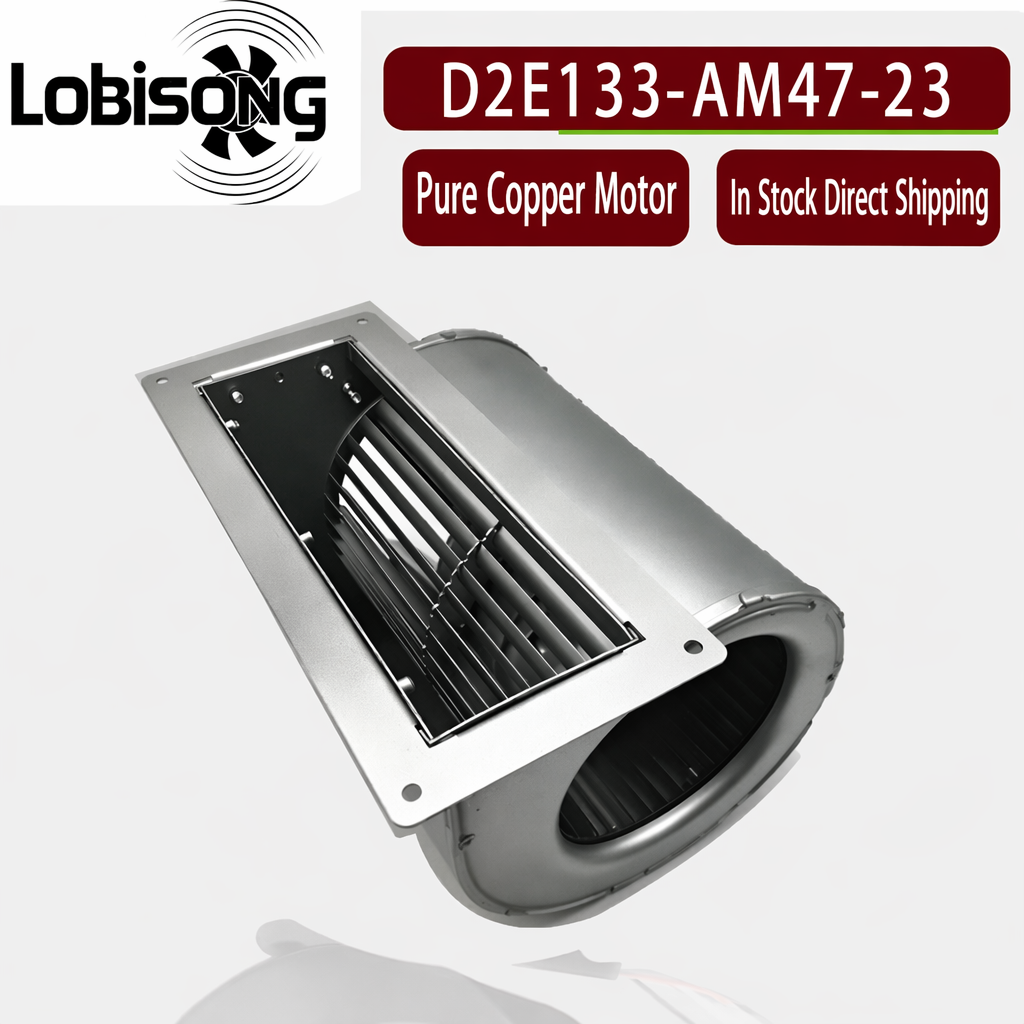

The D2E133-AM47-73, D2E133-AM47-71, D2E133-AM47-01, and D2E133-AM47-23 are 230V AC double inlet centrifugal fan references for equipment ventilation and cabinet cooling. This Double Inlet Centrifugal Fan series is intended for buyers who need to compare a selected fan with the electrical supply, installation position, airflow route, and operating conditions of finished equipment.

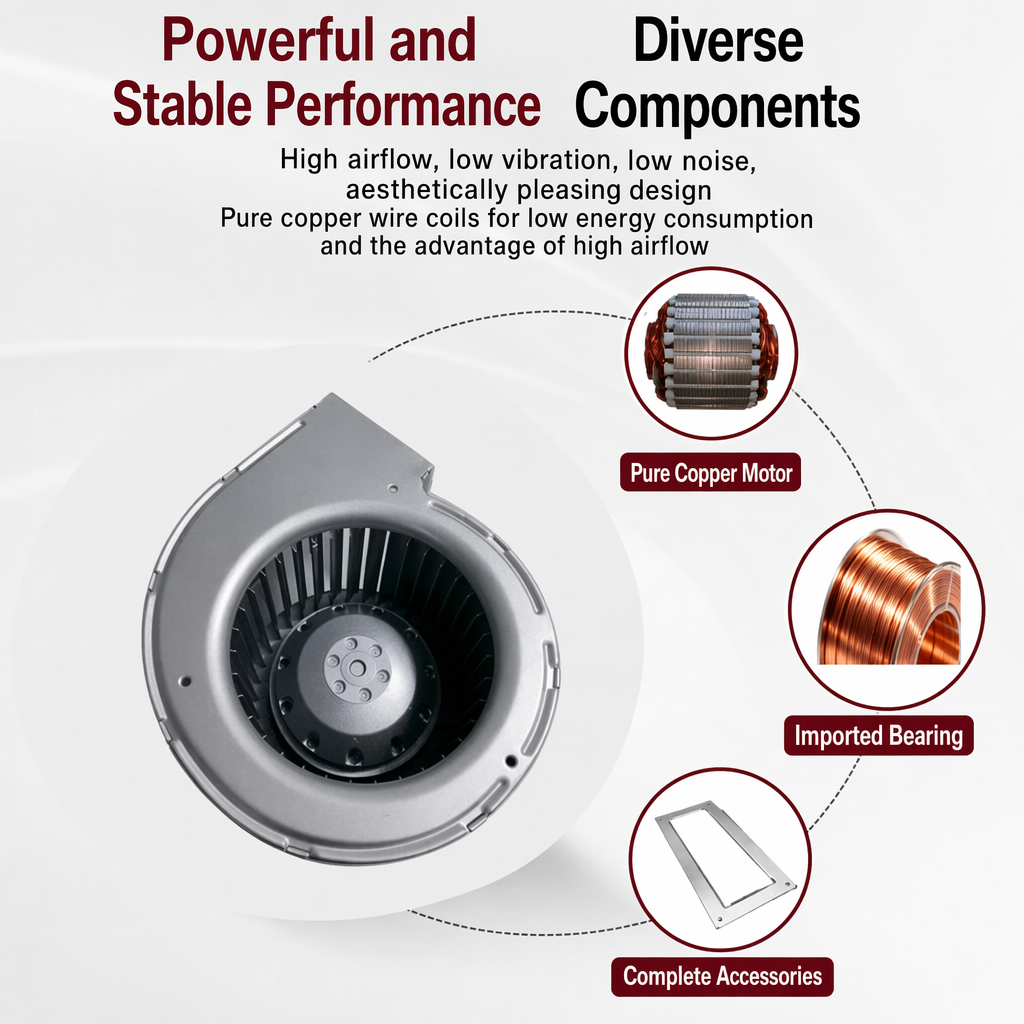

The family operates on 50/60Hz systems and is specified with a 1500–2400 RPM series range and working conditions from -25°C to +60°C. Confirmed construction features include a permanent-magnet brushless outer rotor motor, pure copper windings, and imported precision bearing support. Each D2E133-AM47 Fan should be selected by complete reference because exact power, speed, airflow, static pressure, mounting dimensions, and noise information can differ between models.

A 230V Centrifugal Fan moves air through a different path from a standard axial fan. In a double inlet arrangement, air enters from both sides of the impeller and is guided toward the outlet path. This configuration can be considered for compact equipment where airflow must be collected and delivered through a cabinet, air passage, ventilation assembly, or machinery enclosure.

The final ventilation result depends on the complete equipment design. Air needs a clear route from the intake side, across the area requiring ventilation, and toward a suitable outlet. Filters, protective guards, ducts, cable bundles, louvered panels, internal partitions, and nearby components can all influence the resistance in that route. A Double Inlet Centrifugal Fan should therefore be selected as part of the full system rather than as an isolated component.

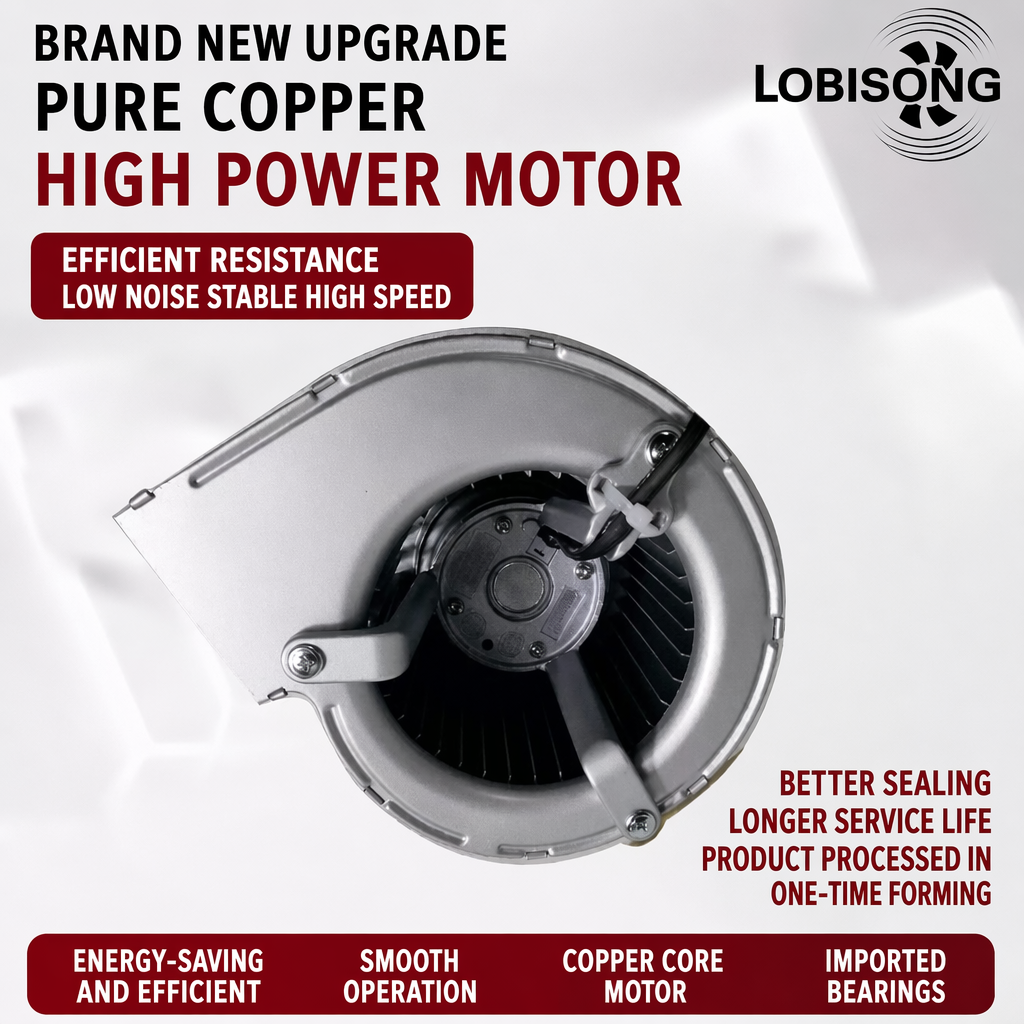

The D2E133-AM47 Fan series uses a permanent-magnet brushless outer rotor motor arrangement. The rotating motor section is integrated with the fan assembly, supporting a compact structure for equipment airflow applications. Before ordering or installing a unit, buyers should verify the selected model, 230V AC supply, mounting position, connection arrangement, airflow direction, and available service space.

Four D2E133-AM47 References: The group includes -73, -71, -01, and -23 for application-specific selection.

230V AC Fan Series: All listed references are specified for a 230V AC supply.

50/60Hz Compatibility: The series can be evaluated for compatible 50Hz or 60Hz electrical systems.

Double Inlet Centrifugal Airflow: Air enters from both sides of the impeller and is directed through an outlet path for controlled equipment ventilation.

Brushless Outer Rotor Motor: The permanent-magnet motor structure supports compact integration into ventilation assemblies.

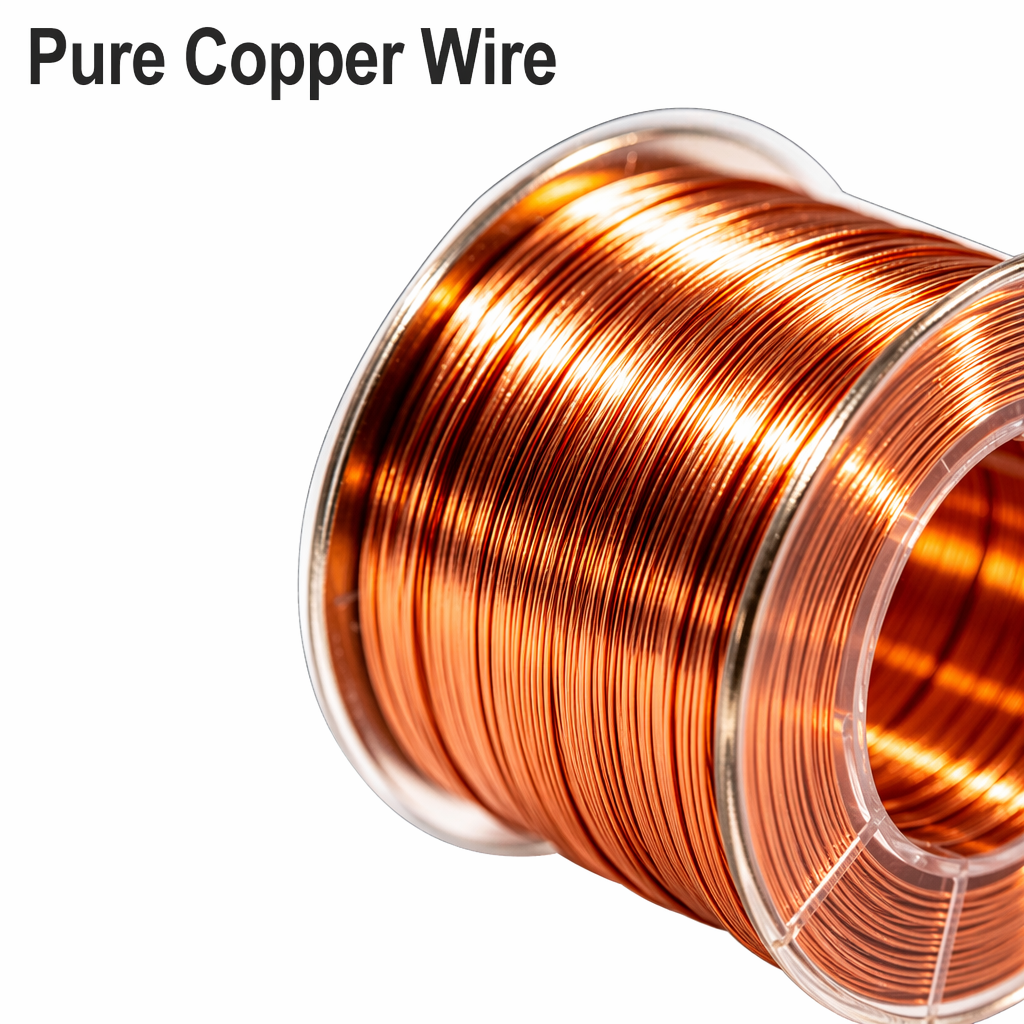

Pure Copper Windings: Copper winding material is a confirmed family construction feature.

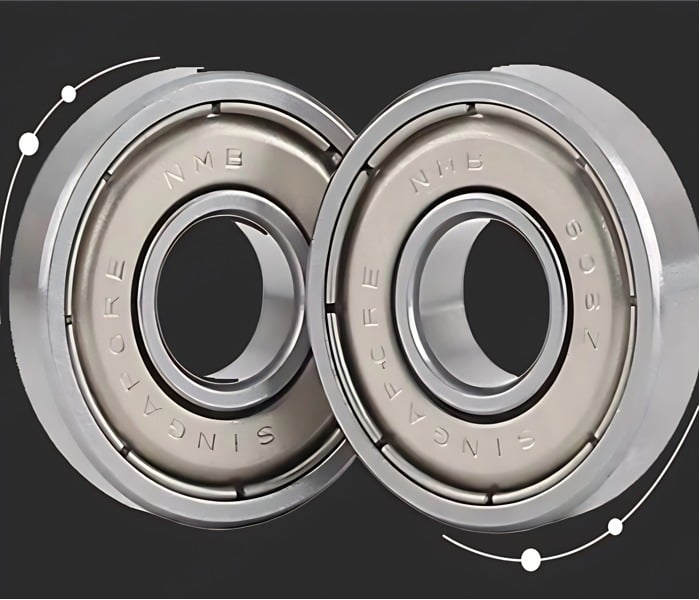

Imported Precision Bearings: The series includes imported precision bearing support as part of its mechanical arrangement.

Defined Working Conditions: The family is specified for operating conditions from -25°C to +60°C.

The 1500–2400 RPM value applies to the family range only. It should not be treated as a fixed speed for every D2E133-AM47 Fan reference. Model-specific technical documents should be checked before assigning performance values to a selected unit.

This table summarizes family-level information. Exact power, speed, airflow, static pressure, noise, dimensions, and connection details should be confirmed from documentation for the selected reference.

This Industrial Ventilation Fan series can be evaluated for electrical cabinets, automation equipment, machine housings, equipment enclosures, and ventilation assemblies. In each case, the selected model should match the verified 230V supply, required airflow direction, mounting position, operating conditions, and completed ventilation route.

For cabinets and control equipment, the fan can be part of a planned route that moves air through restricted internal spaces. For machine housings, mounting layout, outlet direction, clearance, protective arrangements, and maintenance access should be reviewed before installation. In ventilation assemblies, performance curves and technical sheets can help engineering teams compare the selected fan with the resistance created by ducts, guards, filters, or other system components.

For procurement, engineering, and maintenance teams, complete reference matching can make sourcing more reliable. The D2E133-AM47 Fan series provides four references for comparing an existing installation or a new equipment design with the required electrical supply, airflow route, physical space, and operating conditions.

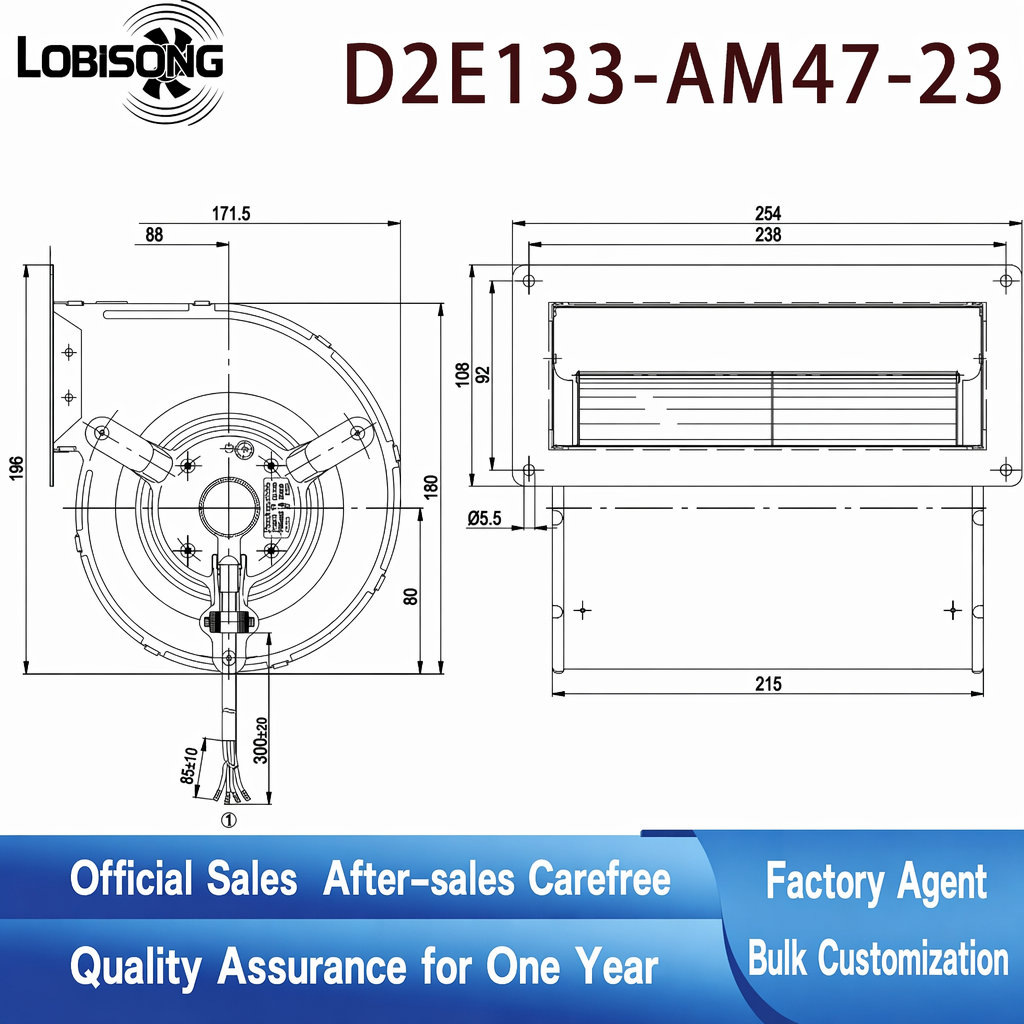

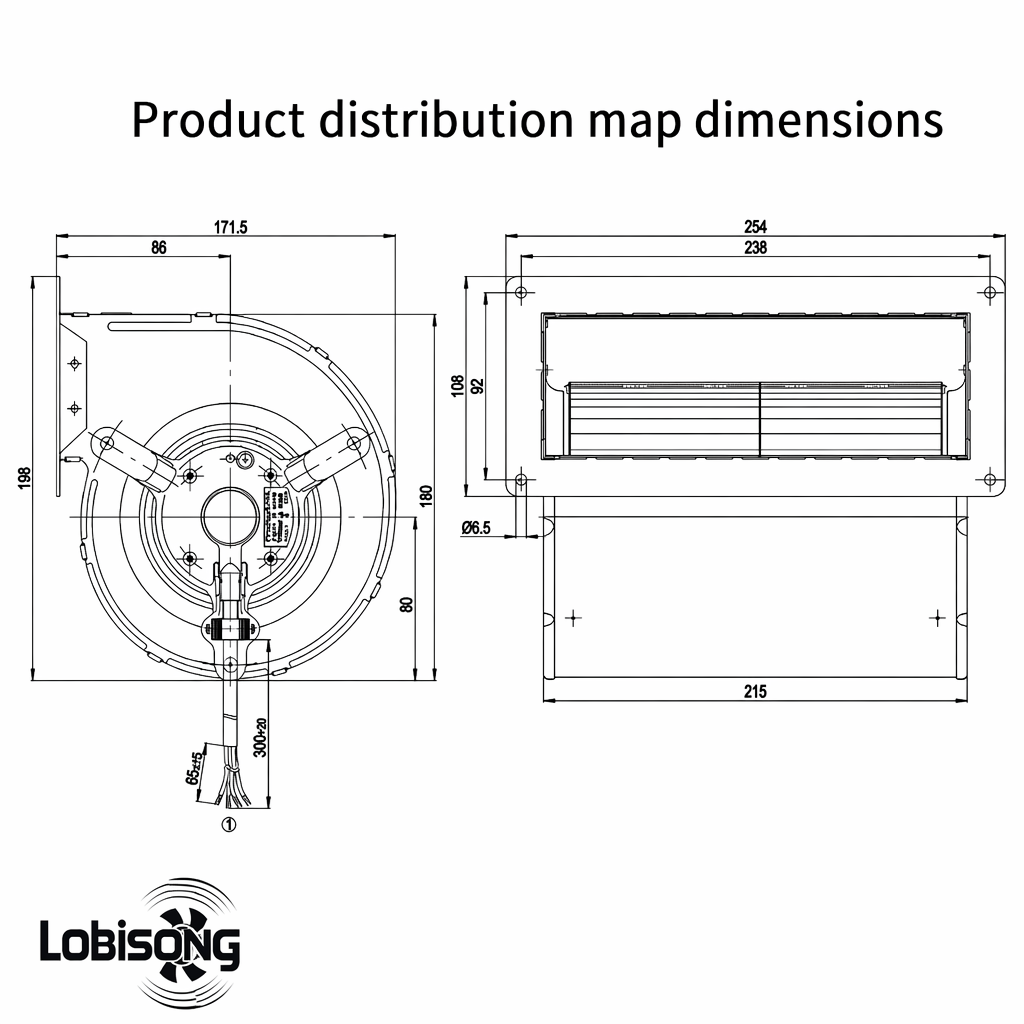

Technical sheets, CAD drawings, performance curves, and wiring references support a documentation-based review. CAD information can help check mounting location and equipment clearance. Performance curves can be considered alongside the resistance of the completed airflow route. Wiring information can support a review of the applicable electrical connection arrangement.

The useful airflow in an enclosure depends on the full route through the system. A Double Inlet Centrifugal Fan may move air through a defined outlet path, but the final result can be reduced by restrictive intakes, blocked outlets, dense wiring, narrow passages, improperly placed guards, or unsuitable duct connections.

A practical review begins by identifying the equipment areas that require ventilation and confirming the direction of the intended airflow. Then assess the fan orientation, inlet conditions, outlet route, surrounding components, and service access. Air should move through the intended area before leaving the enclosure instead of circulating within a restricted section.

Which models are included in this series?
The series includes D2E133-AM47-73, D2E133-AM47-71, D2E133-AM47-01, and D2E133-AM47-23.

What electrical information is confirmed?
The family is specified for 230V AC and 50/60Hz operation.

Does every model have the same speed and airflow?
No. The 1500–2400 RPM value is a family range. Confirm model-specific speed, power, airflow, and static-pressure information using the corresponding technical sheet.

What working conditions are specified for the family?
The series is specified for conditions from -25°C to +60°C. Confirm the selected model against the actual equipment environment.

What should be checked before ordering?
Confirm the complete model reference, electrical supply, mounting layout, connection arrangement, airflow direction, equipment conditions, and relevant documentation.
