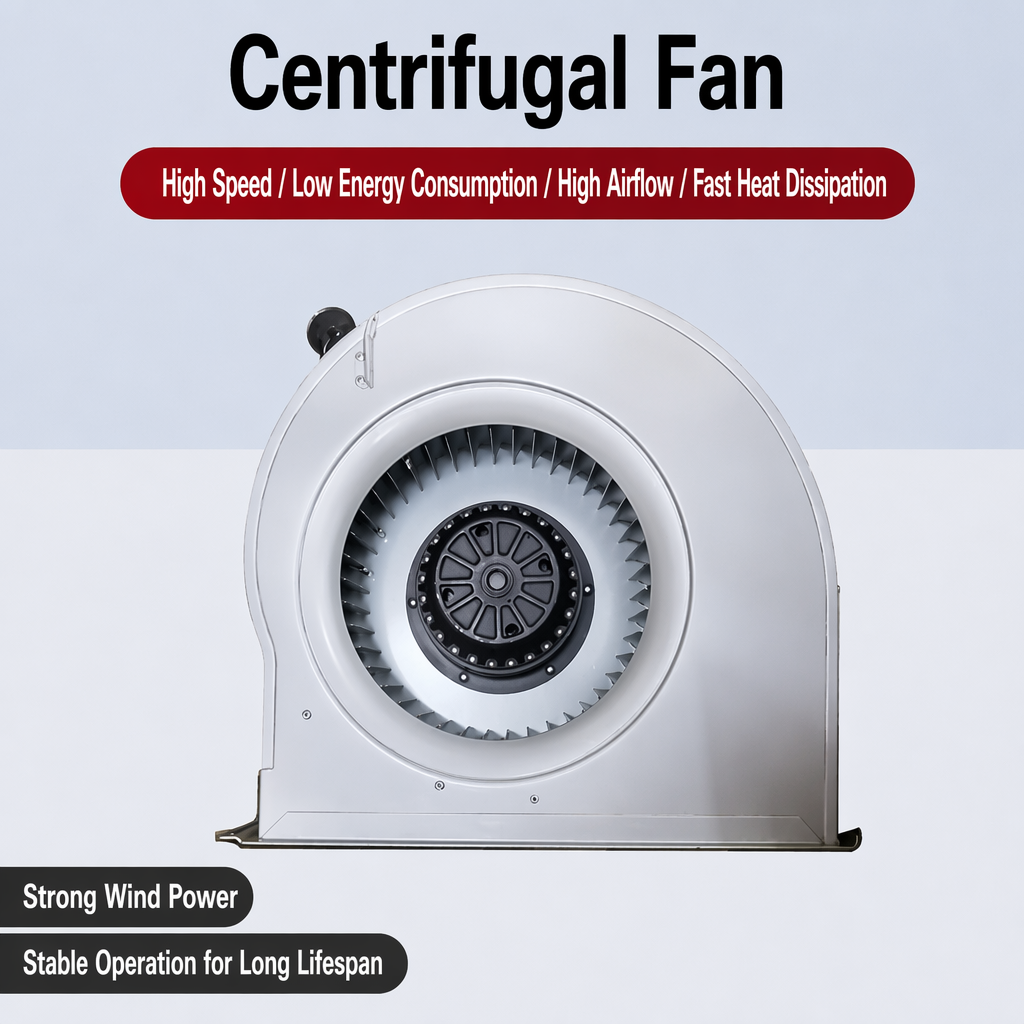

The G4E280-BC23-05 Fan is a 230V turbine centrifugal fan for industrial equipment cooling, drive system ventilation, electrical cabinet airflow, and controlled air delivery through enclosed equipment paths. Related identifiers include 6SL3362-0AG00-0AA1 and RG28P-4EK.41.1R. This G4E280-BC23-05 Fan can be evaluated for replacement and equipment-integration projects where the complete reference, supply, mounting position, airflow route, and technical documentation can be verified.

The product is identified for a 230V AC supply and compatible 50Hz or 60Hz systems. Confirmed construction details include a turbine centrifugal airflow arrangement, galvanized steel impeller, die-cast aluminum housing, brushless outer rotor motor, pure copper windings, imported precision bearing support, and IP44 protection subject to the installation method. Exact electrical and aerodynamic values must be checked against documentation for the selected reference before ordering or installation.

A Turbine Centrifugal Fan uses a side intake channel and rotating impeller to guide air toward an outlet path. This arrangement differs from a simple axial fan because airflow is intended to move through a defined inlet and outlet route. It can be considered where a drive enclosure, electrical cabinet, ventilation passage, filter, duct, or machine housing creates airflow resistance.

The final result depends on the complete installed system, not on the fan alone. Equipment openings, filters, guards, ducts, cable routing, internal partitions, and nearby components can all create resistance. A clear intake and correctly positioned outlet help air move through the intended cooling path instead of remaining in restricted areas.

For replacement work, compare the installed label with the complete G4E280-BC23-05 reference and listed cross-references. For a new design, compare the product with the required 230V supply, mounting position, clearance, connection area, inlet and outlet profile, intended ventilation route, and service access.

G4E280-BC23-05 Reference: Supports model-based identification for compatible drive cooling and equipment ventilation projects.

Related Cross-References: 6SL3362-0AG00-0AA1 and RG28P-4EK.41.1R are listed for matching and replacement review.

230V AC Supply: The product is identified for a 230V AC supply and compatible 50/60Hz systems.

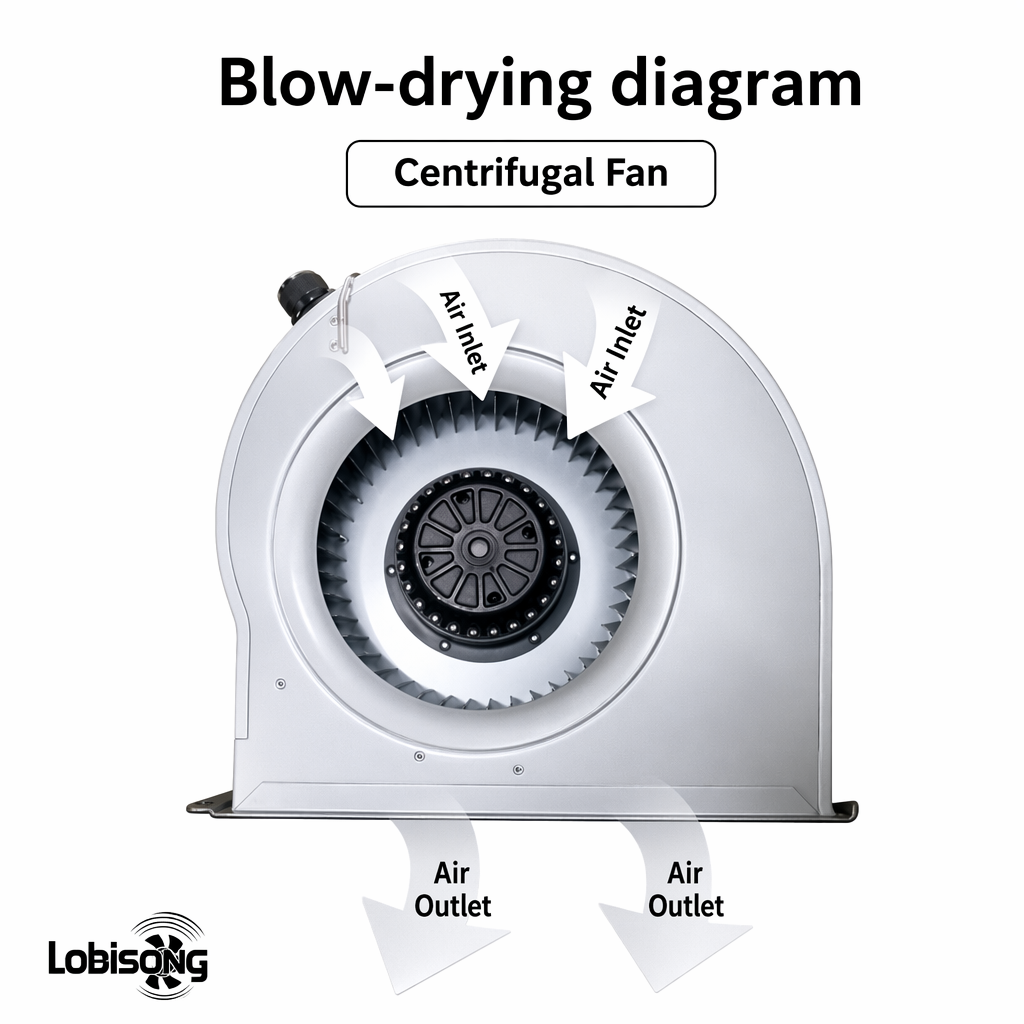

Turbine Centrifugal Airflow: Air enters through a side intake and is directed through the housing toward an outlet route.

Galvanized Steel Impeller: Galvanized steel is the confirmed impeller material.

Die-Cast Aluminum Housing: The housing is confirmed as die-cast aluminum.

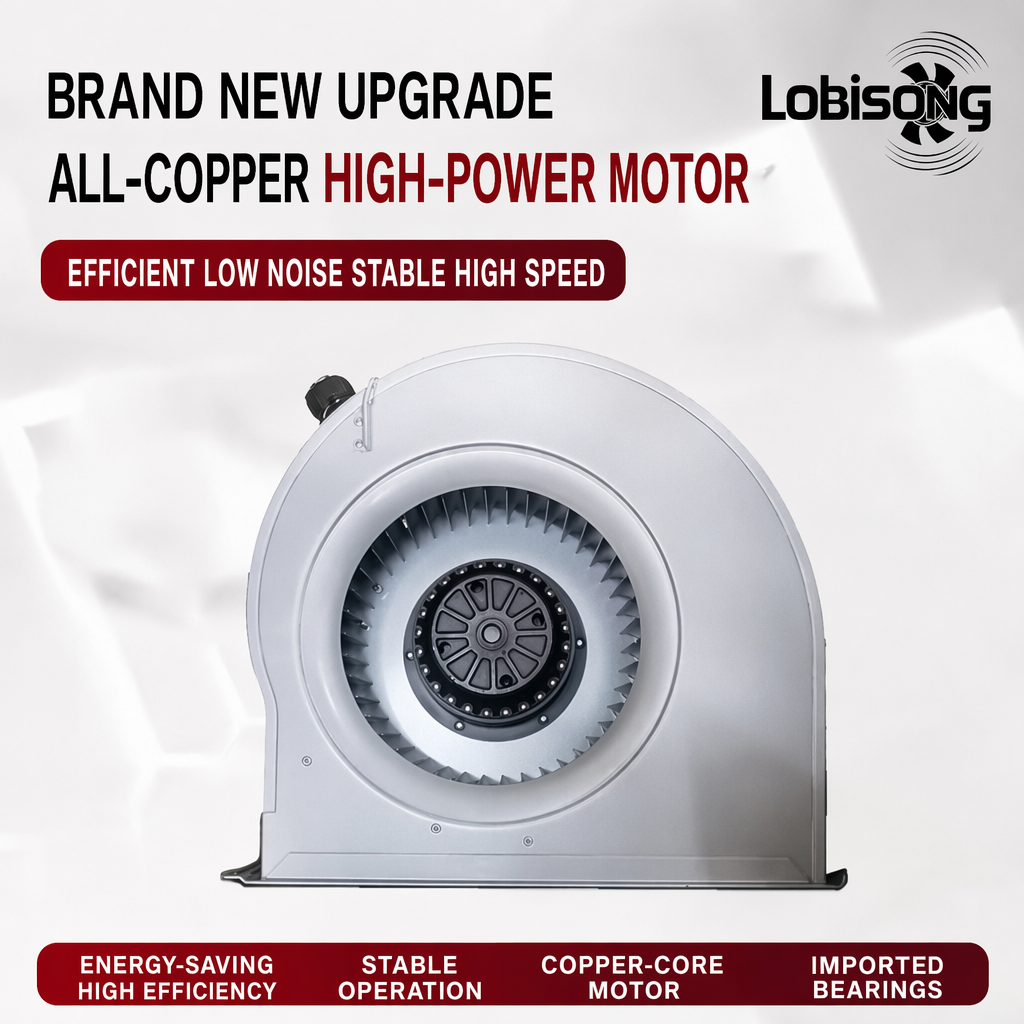

Brushless Outer Rotor Motor: The outer rotor arrangement supports compact equipment integration.

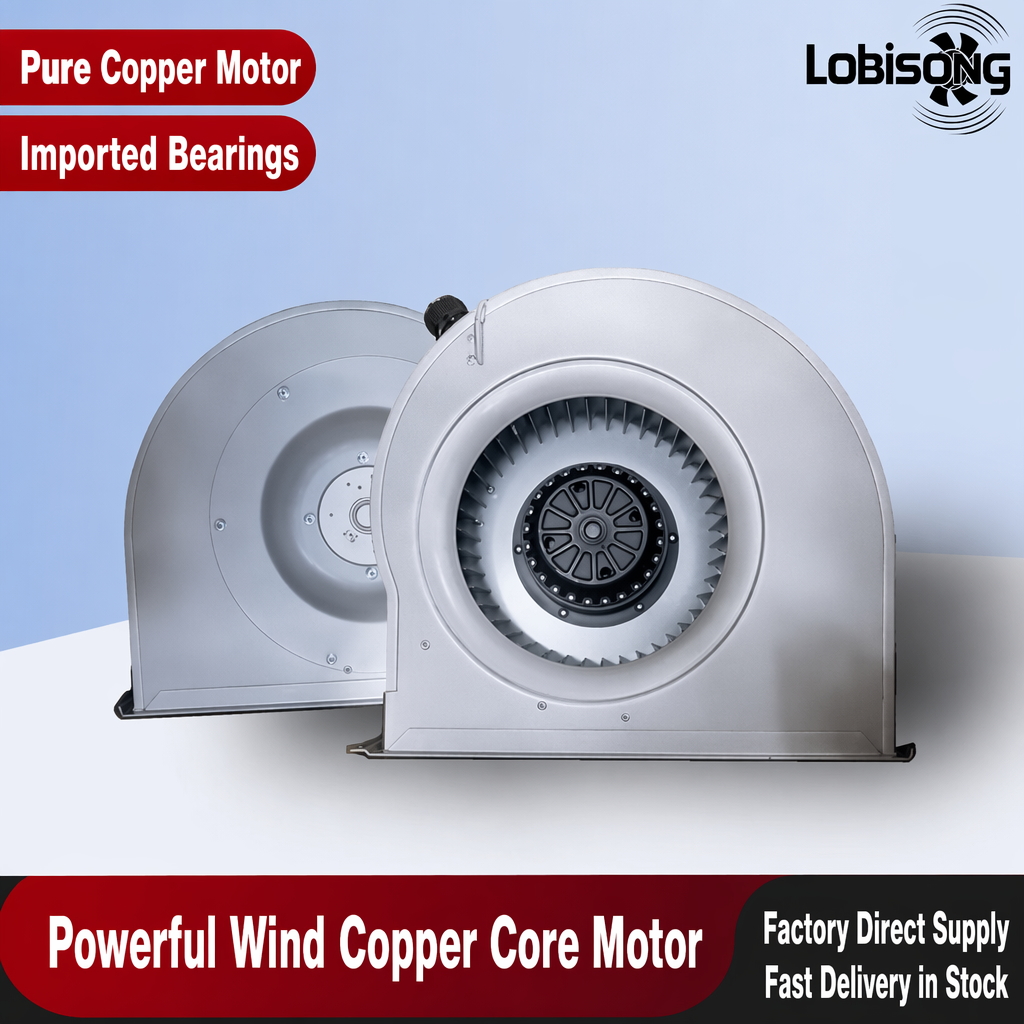

Copper Windings and Precision Bearings: These are confirmed motor and rotating-assembly details.

IP44 Context: The IP44 rating applies subject to the completed installation method.

This table contains confirmed information only. Before selection, verify exact connection requirements, mounting dimensions, airflow direction, electrical values, and performance data against documentation for the selected reference.

The G4E280-BC23-05 Fan can be evaluated for drive system cooling, inverter drives, servo amplifiers, electrical cabinets, control panels, automation equipment, machine enclosures, industrial ventilation assemblies, and replacement projects. It is relevant where a completed system has a defined route from side intake to outlet.

For drive or cabinet applications, the fan may operate with filters, ducts, guards, ventilation grills, cable routing, internal partitions, and heat-producing components. These elements influence resistance and the final airflow route. For machinery enclosures, review mounting interface, outlet direction, clearance, surrounding components, and maintenance access before installation.

For procurement, engineering, and maintenance teams, complete reference matching helps reduce uncertainty during sourcing. The G4E280-BC23-05 Fan and listed cross-references can be compared against an existing supply, mounting arrangement, inlet and outlet layout, connection area, and ventilation role before a replacement or integration decision is made.

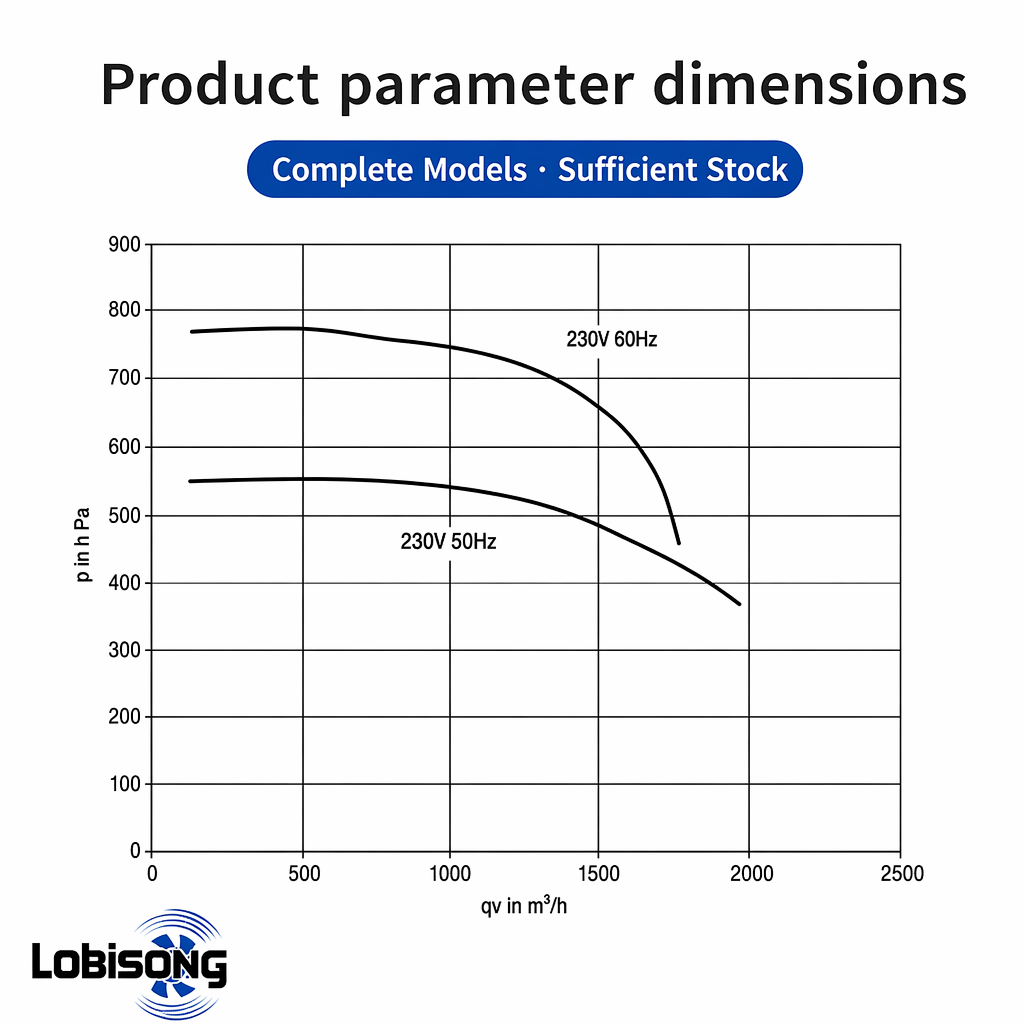

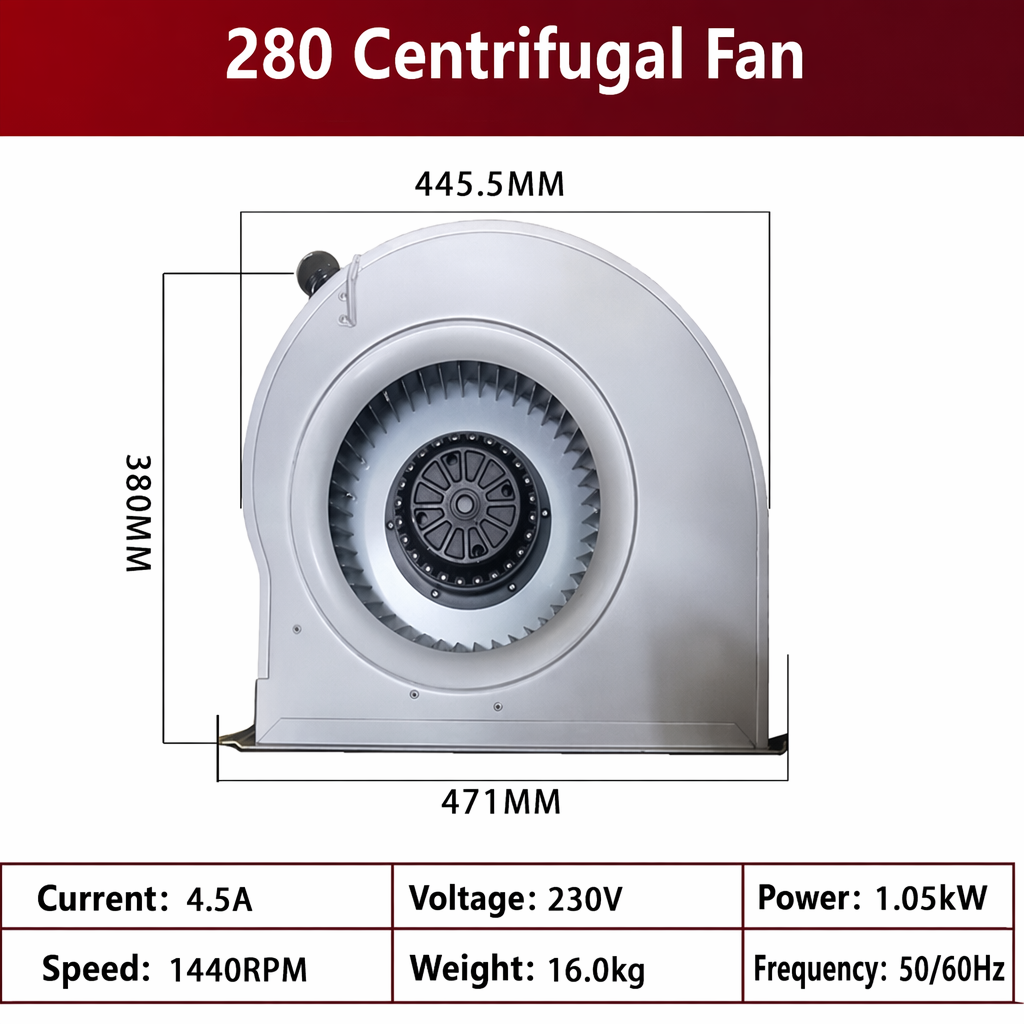

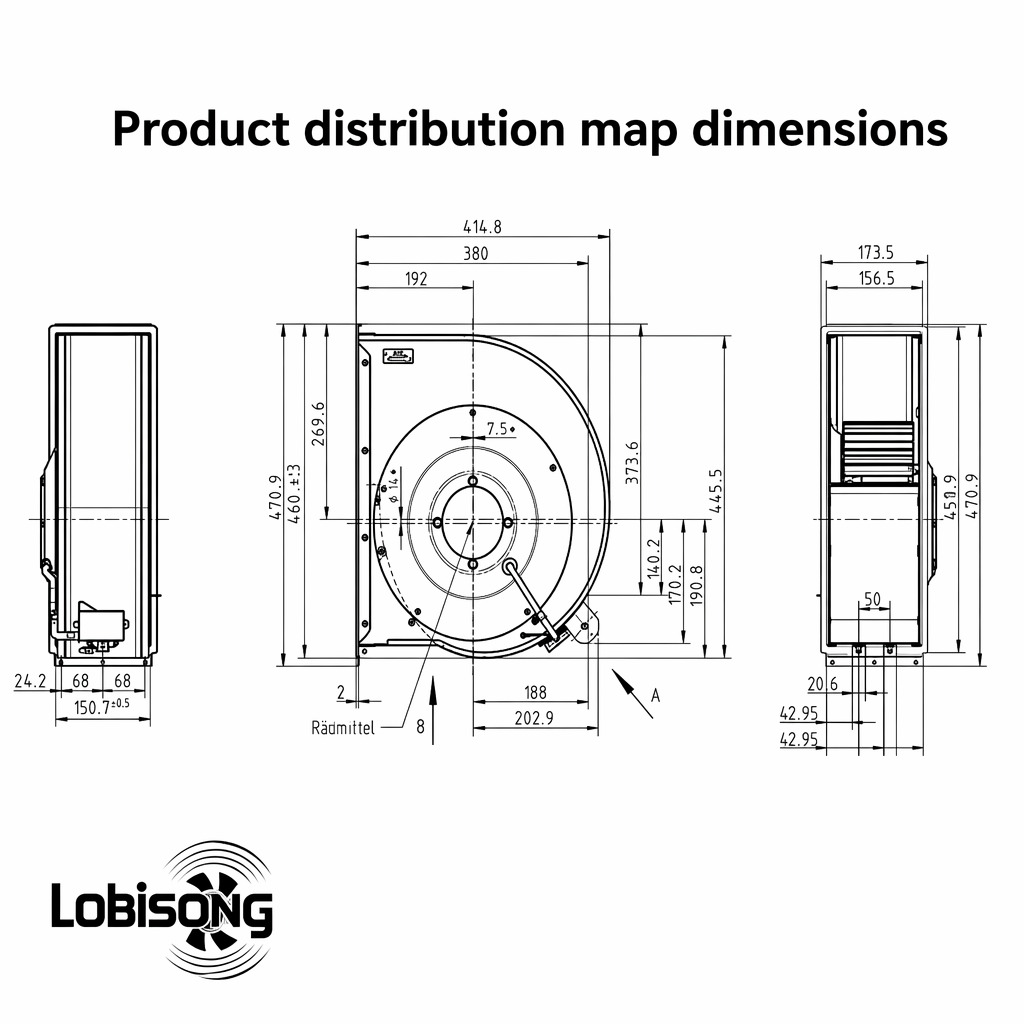

Technical parameter information and CAD dimensional drawings support a documentation-based review. Drawings can help check fan outline, mounting-hole positions, inlet and outlet profiles, connection location, and available equipment space. This process helps coordinate mechanical, electrical, and airflow requirements across purchasing, design, maintenance, and quality teams.

A centrifugal fan works within the full airflow system. Restrictive filters, narrow ducts, blocked outlets, guards, cable bundles, and internal partitions can use available pressure before air reaches the area requiring cooling. Review these conditions because a fan that fits mechanically may not match the resistance of the completed equipment.

Start by identifying heat-producing sections and confirm the route from side intake to outlet. Then check orientation, inlet condition, outlet direction, duct profile, nearby equipment, and service access. Air should move through the intended area before leaving through a suitable outlet instead of circulating within a restricted section.

What is the G4E280-BC23-05 Fan used for?
It can be evaluated for compatible drive cooling, electrical cabinet ventilation, industrial equipment airflow, and installations requiring controlled centrifugal airflow.

What cross-references are listed?
The listed cross-references are 6SL3362-0AG00-0AA1 and RG28P-4EK.41.1R.

What electrical information is confirmed?
The product is identified for 230V AC and compatible 50/60Hz systems. Confirm the exact electrical configuration for the selected reference.

What should be checked before ordering?
Confirm the complete reference, mounting arrangement, 230V supply, electrical connection, intake and outlet path, installation method, and applicable technical documentation.
