When every millimeter inside an electrical cabinet matters, the cooling fan cannot be oversized—it must be efficient at its frame size. The Lobisong LBAA2D145S-5MNW-01 is a 145mm AC axial fan purpose-built for tight enclosures where a larger blower will not fit. Running on 380V three-phase at 2800 RPM, this 3-phase cabinet cooling fan moves 268 m³/h while emitting just 46 dB(A)—quiet enough for office-adjacent equipment rooms. Balanced to G6.3 and sealed to IP54, this high-efficiency low-noise fan is the answer for PLC cabinets, VFD enclosures, and telecom racks that need reliable through-flow cooling without workspace noise.

Compact-cooling engineers face a familiar trade-off: smaller frames spin faster to compensate, and faster spinning means more noise. The brief for this industrial axial fan was to break that trade-off. A cold-rolled sheet impeller at 2800 RPM draws 268 m³/h straight through the cabinet—the classic axial through-flow path that loses little energy turning corners.

Noise was engineered down, not tolerated. At 46 dB(A), this 145mm axial fan sits below typical office ambient, meaning a control panel in a reception area or a telecom enclosure in an office building triggers no noise complaints. G6.3 precision balancing per JB/T8689 keeps vibration and tonal whine minimal across the 2800 RPM range of this IP54 AC fan. The motor is Class F wound and IP54 protected, so workshop dust and occasional water spray will not shorten life. Maintenance-free ball bearings carry a 30,000-hour L10 rating—enough to outlast most equipment refresh cycles.

• 46 dB(A) ultra-quiet operation: This IP54 AC fan runs below office ambient levels, making the high-efficiency low-noise fan suitable for reception areas and open-plan equipment rooms.

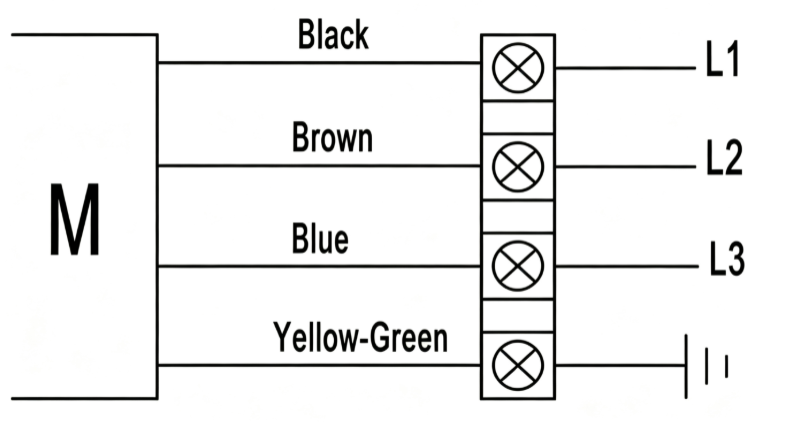

• 380V three-phase 2800 RPM motor: A 342–418V tolerant winding delivers stable 268 m³/h airflow with high starting torque for repetitive cabinet-duty cycles.
• G6.3 precision balancing: Per JB/T8689, vibration and tonal noise stay low, extending bearing life to 30,000 hours L10.

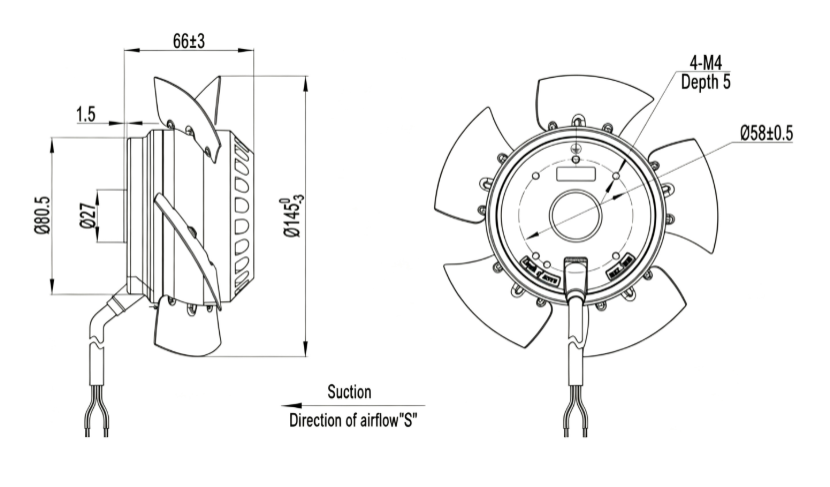

• Compact Ø145mm frame: The small impeller diameter fits tightly stacked PLC/VFD enclosures where a larger centrifugal blower cannot be accommodated.
• IP54 dust- and spray-rated: Protects this IP54 ventilation fan in dusty workshop and splash-prone cabinet installations.
• Class F, S1 continuous duty: 155°C insulation supports non-stop operation in 24/7 industrial cooling without thermal stress.

Why does a three-phase 145mm axial fan make sense for cabinet cooling when single-phase options are cheaper? Three-phase motors draw lower current for the same shaft power, run without a starting capacitor (the most common single-phase failure part), and produce a smoother rotating field. For a 50W cabinet fan, lower current means smaller breakers and less heat in the panel. The 2800 RPM operating point is deliberate: fast enough to move 268 m³/h through a compact 145mm impeller, yet slow enough that G6.3 balancing keeps this industrial axial fan at 46 dB(A) rather than 55–60 dB(A).

Space-constrained cooling is really an air-path problem. Inside a PLC cabinet, hot air rises; an intake louver near the bottom and an exhaust fan near the top create stack effect. This IP54 AC fan drops into that top-exhaust position with a frame fitting standard 145mm cutouts. Because the fan moves air parallel to the shaft, it needs little clearance behind it—unlike a centrifugal blower requiring volute depth. IP54 protects against conductive dust on workshop floors. For control-panel OEMs, compact depth, low noise, and three-phase reliability make this 145mm axial fan a drop-in standard.

• PLC enclosure ventilation and VFD cooling: Mount this AC axial fan on top of PLC/VFD enclosures to exhaust hot air through filtered intake louvers.
• PLC enclosure ventilation: The high-efficiency low-noise fan suits open-panel and rackmount ventilation in machine-control desks and operator interfaces.
• Telecom rack and inverter cooling: Use this 380V industrial fan in UPS systems, rectifiers, and telecom shelters where three-phase power is available.
• Compact machinery OEM cooling: Integrate 3-phase cabinet cooling fan into machine tools, laser cutters, and test equipment with tight airflow budgets.
• Office-adjacent equipment bays: At 46 dB(A), this IP54 AC fan cools enclosures in reception areas without triggering noise complaints.

For OEMs building control panels in volume, standardizing on this industrial axial fan eliminates the dual-SKU headache of stocking single-phase and three-phase variants. Because 380V is already ubiquitous on factory floors, 3-phase cabinet cooling fan drops into existing infrastructure without a transformer. The 50W draw keeps branch loads low, and 30,000-hour L10 bearing life means replacements rarely enter the spares chain. One part number fits every cabinet size; no lubrication or capacitor replacement needed. That is the commercial case for this industrial axial fan.

Q1: Why is this 145mm axial fan rated at 380V three-phase instead of 220V single-phase?

A: Three-phase winding runs more efficiently at the same shaft power, draws lower current, and has no starting capacitor to fail. In industrial plants where 380V is standard, 3-phase cabinet cooling fan drops into existing cabinet wiring. The 342–418V tolerance also handles voltage dips during machine starts.

Q2: Is 46 dB(A) really quiet enough for an office environment?

A: Yes. Typical office background is 40–50 dB(A), so a 46 dB(A) AC axial fan is barely perceptible behind a cabinet door. G6.3 balancing removes the tonal whine that makes small fans annoying even at low dB levels. For reception areas, this high-efficiency low-noise fan is one of the quietest in its frame size.

Q3: Can I add a filter guard to the intake of this 3-phase axial fan?

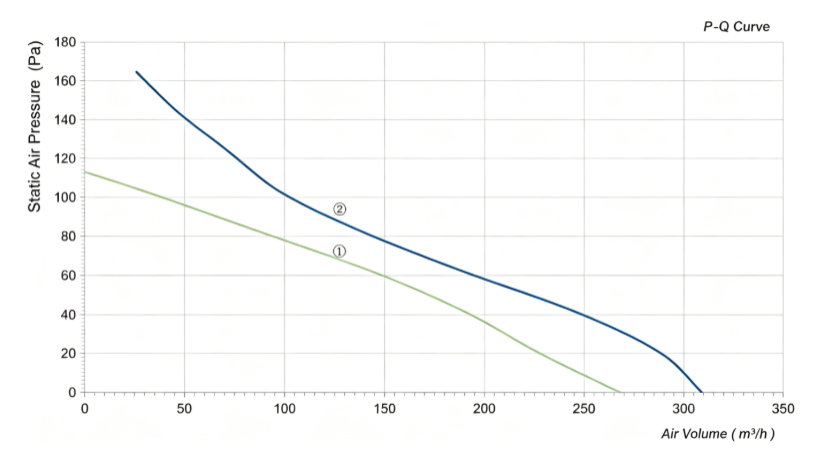

A: Yes, but note that a filter adds static resistance. This fan is rated for low-pressure cabinet applications; a coarse filter guard is fine, but a dense HE-grade filter will reduce airflow. For heavily dusty locations, pair the intake with a disposable pre-filter and verify that 268 m³/h still meets your heat-dissipation target.
